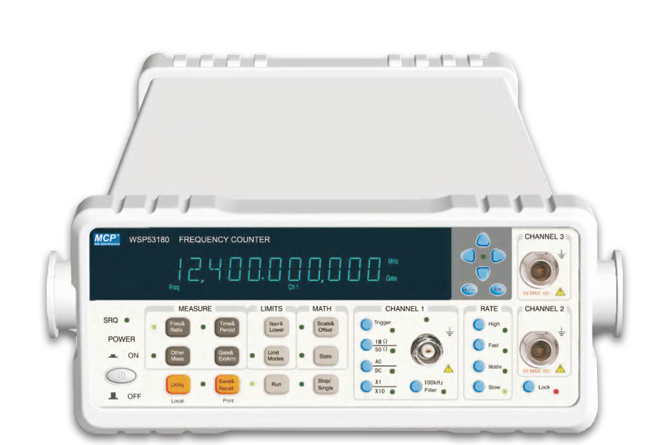

WSP53180I FREQUENCY COUNTER
BDT 316,916/-
Product Details
Brand: MCP
Model: WSP53180I
Country Of Origin: China
Features
-
High-accuracy frequency counter with 10 digits/s resolution
-
High-performance AVR CPU, LSI, and CPLD for reliability
-
Single time interval and pulse width measurement
-
Automatic statistical functions: mean, max, min, delta, absolute deviation, relative deviation (PPM), standard deviation, Allan variance
-
Average measurement function for improved accuracy of time interval, pulse width, phase, duty cycle
-
Time gate totalizing and manual totalizing modes
-
Automatic data storage with zero loss
-
Save up to 9 measurement setups
-
Interfaces: USB, RS232, Centronics printer
-
Upper computer software support
-
VFD display, compact and ergonomic design
Technical Data
| Specification | WSP53180 |
|---|---|
| Functions | Frequency, Period, Frequency Ratio; Statistical Analysis (mean, max, min, delta, deviation, PPM, Allan variance) |
| Frequency Range (CH A) | 0.001Hz–225MHz (standard); DC–225MHz (military) |
| Frequency Range (CH B & C) | 200MHz–1.5GHz (I), 200MHz–3GHz (II), 200MHz–6GHz (III), 200MHz–9GHz (IV), 200MHz–12.4GHz (V), 200MHz–16GHz (VI) |
| Input Voltage | 40mVrms = ±5Vrms + DC |
| Period Range | 20ns/10ns–7000s |
| Frequency Resolution | 10 digits/s |
| Coupling Mode | CH A: AC/DC; CH B/C: AC |
| Input Impedance | 1MΩ/45pF or 50Ω |
| LPF | 100kHz |
| Attenuator | ×1, ×10 |
| Time Base Stability | 5MHz, ≤1×10⁻⁸/day; external time base 5MHz/10MHz auto-switching |
| Power Supply | 110–127VAC ±10%, 220–240VAC ±10%, 50/60Hz ±2Hz |
| Dimensions | 255×100×370mm |
| Weight | 2.5kg |
| Functions | Frequency, Period, Frequency Ratio; Statistical Analysis (mean, max, min, delta, deviation, PPM, Allan variance) |
| Frequency Range (CH A) | 0.001Hz–225MHz (standard); DC–225MHz (military) |
| Frequency Range (CH B & C) | 200MHz–1.5GHz (I), 200MHz–3GHz (II), 200MHz–6GHz (III), 200MHz–9GHz (IV), 200MHz–12.4GHz (V), 200MHz–16GHz (VI) |
| Input Voltage | 40mVrms = ±5Vrms + DC |
| Period Range | 20ns/10ns–7000s |
| Frequency Resolution | 10 digits/s |
| Coupling Mode | CH A: AC/DC; CH B/C: AC |
| Input Impedance | 1MΩ/45pF or 50Ω |
| LPF | 100kHz |
| Attenuator | ×1, ×10 |
| Time Base Stability | 5MHz, ≤1×10⁻⁸/day; external time base 5MHz/10MHz auto-switching |
| Power Supply | 110–127VAC ±10%, 220–240VAC ±10%, 50/60Hz ±2Hz |
| Dimensions | 255×100×370mm |
| Weight | 2.5kg |
Features
-
High-accuracy frequency counter with 10 digits/s resolution
-
High-performance AVR CPU, LSI, and CPLD for reliability
-
Single time interval and pulse width measurement
-
Automatic statistical functions: mean, max, min, delta, absolute deviation, relative deviation (PPM), standard deviation, Allan variance
-
Average measurement function for improved accuracy of time interval, pulse width, phase, duty cycle
-
Time gate totalizing and manual totalizing modes
-
Automatic data storage with zero loss
-
Save up to 9 measurement setups
-
Interfaces: USB, RS232, Centronics printer
-
Upper computer software support
-
VFD display, compact and ergonomic design
Technical Data
| Specification | WSP53180 |
|---|---|
| Functions | Frequency, Period, Frequency Ratio; Statistical Analysis (mean, max, min, delta, deviation, PPM, Allan variance) |
| Frequency Range (CH A) | 0.001Hz–225MHz (standard); DC–225MHz (military) |
| Frequency Range (CH B & C) | 200MHz–1.5GHz (I), 200MHz–3GHz (II), 200MHz–6GHz (III), 200MHz–9GHz (IV), 200MHz–12.4GHz (V), 200MHz–16GHz (VI) |
| Input Voltage | 40mVrms = ±5Vrms + DC |
| Period Range | 20ns/10ns–7000s |
| Frequency Resolution | 10 digits/s |
| Coupling Mode | CH A: AC/DC; CH B/C: AC |
| Input Impedance | 1MΩ/45pF or 50Ω |
| LPF | 100kHz |
| Attenuator | ×1, ×10 |
| Time Base Stability | 5MHz, ≤1×10⁻⁸/day; external time base 5MHz/10MHz auto-switching |
| Power Supply | 110–127VAC ±10%, 220–240VAC ±10%, 50/60Hz ±2Hz |
| Dimensions | 255×100×370mm |
| Weight | 2.5kg |
The WSP53180 Frequency Counter delivers ultra-precise frequency measurement with ranges up to 16GHz (depending on model). Featuring 10-digit resolution, advanced statistical analysis, and a stable 5MHz time base, it ensures reliable results for laboratory, RF, and military applications. With AC/DC coupling, selectable attenuation, and multiple input channels, the WSP53180 provides versatile measurement capabilities. Compact and robust, it includes USB, RS232, and printer interfaces, making it ideal for professional test environments requiring high accuracy.
