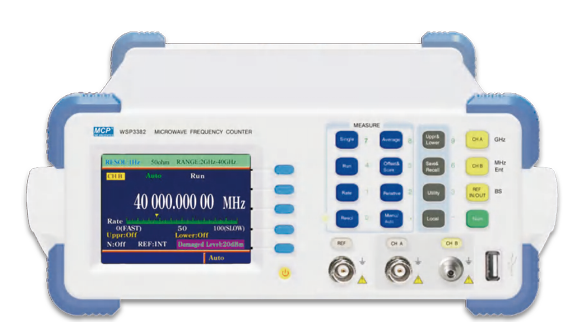

WSP3382I MICRO WAVE FREQUENCY COUNTER
BDT 465,654/-
Product Details
Brand: MCP
Model: WSP3382I
Country Of Origin: China
Features
-
Frequency measurement up to 40GHz
-
Wide dynamic measurement range
-
High accuracy and performance
-
Compact design with plastic die-casting for durability
-
MTBF >8000h for reliability
-
3.5" QVGA color LCD with soft keys
-
Automatic and manual frequency measurement modes
-
USB interface, optional GPIB
Technical Data
| Specification | WSP3382 |
|---|---|
| Channel A (1MΩ) | Frequency Range: 10Hz–80MHz; Resolution: 1Hz–10kHz selectable, 9 digits/s; Sensitivity: 30mVrms; Max Input: 1Vrms (+13dBm); Damage Level: 3Vrms (+23dBm) |
| Channel A (50Ω) | Frequency Range: 60MHz–3GHz; Resolution: 1Hz–10kHz selectable, 9 digits/s; Sensitivity: 25mVrms (–20dBm); Max Input: 1Vrms (+13dBm); Damage Level: 3Vrms (+23dBm) |
| Channel B Models | WSP3382 I: 2–9GHz; II: 2–12.4GHz; III: 2–18GHz; IV: 2–20GHz; V: 2–22GHz; VI: 2–26.5GHz; VII: 2–36GHz; VIII: 2–40GHz |
| Channel B Sensitivity | ≤–25dBm (2–12.4GHz); ≤–20dBm (12.4–18GHz); ≤–15dBm (18–26.5GHz); ≤–10dBm (26.5–40GHz) |
| Input Impedance | 50Ω |
| Max Input Level | +7dBm |
| Damage Level | +20dBm |
| Input SWR | ≤3.5 (2–40GHz typical) |
| Time Base | 10MHz |
| Frequency Stability | 1×10⁻⁷/day |
| Power Supply | 100–240VAC, 47–63Hz |
| Dimensions | 265×104×375mm |
| Weight | 3kg |
| Channel A (1MΩ) | Frequency Range: 10Hz–80MHz; Resolution: 1Hz–10kHz selectable, 9 digits/s; Sensitivity: 30mVrms; Max Input: 1Vrms (+13dBm); Damage Level: 3Vrms (+23dBm) |
| Channel A (50Ω) | Frequency Range: 60MHz–3GHz; Resolution: 1Hz–10kHz selectable, 9 digits/s; Sensitivity: 25mVrms (–20dBm); Max Input: 1Vrms (+13dBm); Damage Level: 3Vrms (+23dBm) |
| Channel B Models | WSP3382 I: 2–9GHz; II: 2–12.4GHz; III: 2–18GHz; IV: 2–20GHz; V: 2–22GHz; VI: 2–26.5GHz; VII: 2–36GHz; VIII: 2–40GHz |
| Channel B Sensitivity | ≤–25dBm (2–12.4GHz); ≤–20dBm (12.4–18GHz); ≤–15dBm (18–26.5GHz); ≤–10dBm (26.5–40GHz) |
| Input Impedance | 50Ω |
| Max Input Level | +7dBm |
| Damage Level | +20dBm |
| Input SWR | ≤3.5 (2–40GHz typical) |
| Time Base | 10MHz |
| Frequency Stability | 1×10⁻⁷/day |
| Power Supply | 100–240VAC, 47–63Hz |
| Dimensions | 265×104×375mm |
| Weight | 3kg |
Features
-
Frequency measurement up to 40GHz
-
Wide dynamic measurement range
-
High accuracy and performance
-
Compact design with plastic die-casting for durability
-
MTBF >8000h for reliability
-
3.5" QVGA color LCD with soft keys
-
Automatic and manual frequency measurement modes
-
USB interface, optional GPIB
Technical Data
| Specification | WSP3382 |
|---|---|
| Channel A (1MΩ) | Frequency Range: 10Hz–80MHz; Resolution: 1Hz–10kHz selectable, 9 digits/s; Sensitivity: 30mVrms; Max Input: 1Vrms (+13dBm); Damage Level: 3Vrms (+23dBm) |
| Channel A (50Ω) | Frequency Range: 60MHz–3GHz; Resolution: 1Hz–10kHz selectable, 9 digits/s; Sensitivity: 25mVrms (–20dBm); Max Input: 1Vrms (+13dBm); Damage Level: 3Vrms (+23dBm) |
| Channel B Models | WSP3382 I: 2–9GHz; II: 2–12.4GHz; III: 2–18GHz; IV: 2–20GHz; V: 2–22GHz; VI: 2–26.5GHz; VII: 2–36GHz; VIII: 2–40GHz |
| Channel B Sensitivity | ≤–25dBm (2–12.4GHz); ≤–20dBm (12.4–18GHz); ≤–15dBm (18–26.5GHz); ≤–10dBm (26.5–40GHz) |
| Input Impedance | 50Ω |
| Max Input Level | +7dBm |
| Damage Level | +20dBm |
| Input SWR | ≤3.5 (2–40GHz typical) |
| Time Base | 10MHz |
| Frequency Stability | 1×10⁻⁷/day |
| Power Supply | 100–240VAC, 47–63Hz |
| Dimensions | 265×104×375mm |
| Weight | 3kg |
The WSP3382 Series Microwave Frequency Counters deliver precision measurement up to 40GHz, offering wide dynamic range and high accuracy for advanced RF and microwave applications. With selectable resolution up to 9 digits/s, robust input protection, and a stable 10MHz time base, these counters ensure reliable performance in demanding environments. Compact and durable, they feature a 3.5" color LCD, USB connectivity, and optional GPIB, making them ideal for laboratories, communication systems, and high-frequency testing.
