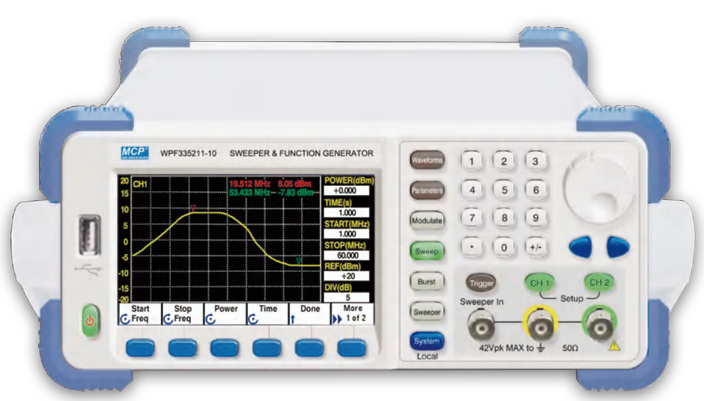

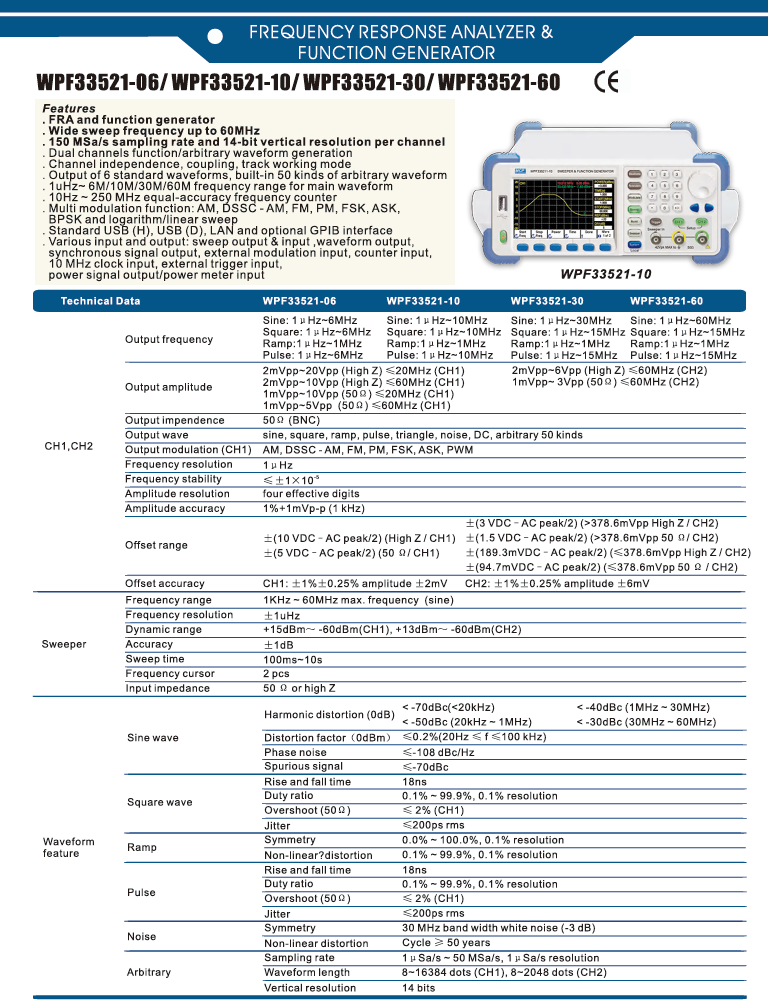

WPF33521-10 FREQUENCY RESPONSE ANALYZER & FUNCTION GENERATOR
BDT 66,976/-
Product Details
Brand: MCP
Model: WPF33521-10
Country Of Origin: China
Features
-
Integrated Frequency Response Analyzer (FRA) and Function Generator
-
Sweep frequency up to 60MHz
-
Sampling rate: 150MSa/s
-
Vertical resolution: 14 bits per channel
-
Dual-channel arbitrary waveform generation
-
Channel independence, coupling, and tracking modes
-
6 standard waveforms + 50 built-in arbitrary waveforms
-
Frequency range: 1µHz–6/10/30/60MHz depending on model
-
Built-in frequency counter: 10Hz–250MHz
-
Modulation functions: AM, DSSC-AM, FM, PM, FSK, ASK, BPSK, PWM, logarithmic/linear sweep
-
Interfaces: USB Host/Device, LAN, optional GPIB
-
Multiple I/O: sweep input/output, waveform output, sync output, external modulation input, counter input, 10MHz clock input, external trigger input, power meter input
Technical Data (Highlights)
| Specification | WPF33521-06 | WPF33521-10 | WPF33521-30 | WPF33521-60 |
|---|---|---|---|---|
| Max Sine Frequency | 6MHz | 10MHz | 30MHz | 60MHz |
| Max Square Frequency | 6MHz | 10MHz | 15MHz | 15MHz |
| Max Ramp Frequency | 6MHz | 10MHz | 15MHz | 15MHz |
| Max Pulse Frequency | 6MHz | 10MHz | 15MHz | 15MHz |
| Output Amplitude (High Z) | 2mVp–20Vp | 2mVp–20Vp | 1mVp–6Vp | 1mVp–6Vp |
| Output Amplitude (50Ω) | ≤6MHz: 2mVp–10Vp | ≤10MHz: 2mVp–10Vp | ≤60MHz: 1mVp–3Vp | ≤60MHz: 1mVp–3Vp |
| Frequency Resolution | ±1µHz | Same | Same | Same |
| Frequency Stability | ≤±1×10⁻⁵ | Same | Same | Same |
| Amplitude Accuracy | ±1%+1mVp | Same | Same | Same |
| DC Offset Range | ±10V (High Z), ±5V (50Ω) | Same | Same | Same |
| Harmonic Distortion | <–70dBc (<20kHz), <–50dBc (≤1MHz), <–40dBc (≤30MHz), <–30dBc (≤60MHz) | Same | Same | Same |
| THD | <0.2% (20Hz–100kHz) | Same | Same | Same |
| Phase Noise | ≤–108dBc/Hz | Same | Same | Same |
| Rise/Fall Time | 18ns | Same | Same | Same |
| Duty Ratio | 0.1%–99.9% | Same | Same | Same |
| Jitter | ≤200ps rms | Same | Same | Same |
| Arbitrary Waveform Length | 8–16384 dots (CH1), 8–2048 dots (CH2) | Same | Same | Same |
| Vertical Resolution | 14 bits | Same | Same | Same |
| Sweep Time | 100ms–10s | Same | Same | Same |
| Power Meter (Option) | 1kHz–100MHz, ±1dB accuracy | Same | Same | Same |
| Power Output (Option) | 10Hz–200kHz, 8W (sine, 8Ω), 2Ω impedance | Same | Same | Same |
| Dimensions | 262×108×284mm | Same | Same | Same |
| Weight | 2.5kg | Same | Same | Same |
| Max Sine Frequency | 10MHz |
| Max Square Frequency | 10MHz |
| Max Ramp Frequency | 10MHz |
| Max Pulse Frequency | 10MHz |
| Output Amplitude (High Z) | 2mVp–20Vp |
| Output Amplitude (50Ω) | ≤10MHz: 2mVp–10Vp |
| Frequency Resolution | ±1µHz |
| Frequency Stability | ≤±1×10⁻⁵ |
| Amplitude Accuracy | ±1%+1mVp |
| DC Offset Range | ±10V (High Z), ±5V (50Ω) |
| Harmonic Distortion | <–70dBc (<20kHz), <–50dBc (≤1MHz), <–40dBc (≤30MHz), <–30dBc (≤60MHz) |
| THD | <0.2% (20Hz–100kHz) |
| Phase Noise | ≤–108dBc/Hz |
| Rise/Fall Time | 18ns |
| Duty Ratio | 0.1%–99.9% |
| Jitter | ≤200ps rms |
| Arbitrary Waveform Length | 8–16384 dots (CH1), 8–2048 dots (CH2) |
| Vertical Resolution | 14 bits |
| Sweep Time | 100ms–10s |
| Power Meter (Option) | 1kHz–100MHz, ±1dB accuracy |
| Power Output (Option) | 10Hz–200kHz, 8W (sine, 8Ω), 2Ω impedance |
| Dimensions | 262×108×284mm |
| Weight | 2.5kg |
Features
-
Integrated Frequency Response Analyzer (FRA) and Function Generator
-
Sweep frequency up to 60MHz
-
Sampling rate: 150MSa/s
-
Vertical resolution: 14 bits per channel
-
Dual-channel arbitrary waveform generation
-
Channel independence, coupling, and tracking modes
-
6 standard waveforms + 50 built-in arbitrary waveforms
-
Frequency range: 1µHz–6/10/30/60MHz depending on model
-
Built-in frequency counter: 10Hz–250MHz
-
Modulation functions: AM, DSSC-AM, FM, PM, FSK, ASK, BPSK, PWM, logarithmic/linear sweep
-
Interfaces: USB Host/Device, LAN, optional GPIB
-
Multiple I/O: sweep input/output, waveform output, sync output, external modulation input, counter input, 10MHz clock input, external trigger input, power meter input
Technical Data (Highlights)
| Specification | WPF33521-06 | WPF33521-10 | WPF33521-30 | WPF33521-60 |
|---|---|---|---|---|
| Max Sine Frequency | 6MHz | 10MHz | 30MHz | 60MHz |
| Max Square Frequency | 6MHz | 10MHz | 15MHz | 15MHz |
| Max Ramp Frequency | 6MHz | 10MHz | 15MHz | 15MHz |
| Max Pulse Frequency | 6MHz | 10MHz | 15MHz | 15MHz |
| Output Amplitude (High Z) | 2mVp–20Vp | 2mVp–20Vp | 1mVp–6Vp | 1mVp–6Vp |
| Output Amplitude (50Ω) | ≤6MHz: 2mVp–10Vp | ≤10MHz: 2mVp–10Vp | ≤60MHz: 1mVp–3Vp | ≤60MHz: 1mVp–3Vp |
| Frequency Resolution | ±1µHz | Same | Same | Same |
| Frequency Stability | ≤±1×10⁻⁵ | Same | Same | Same |
| Amplitude Accuracy | ±1%+1mVp | Same | Same | Same |
| DC Offset Range | ±10V (High Z), ±5V (50Ω) | Same | Same | Same |
| Harmonic Distortion | <–70dBc (<20kHz), <–50dBc (≤1MHz), <–40dBc (≤30MHz), <–30dBc (≤60MHz) | Same | Same | Same |
| THD | <0.2% (20Hz–100kHz) | Same | Same | Same |
| Phase Noise | ≤–108dBc/Hz | Same | Same | Same |
| Rise/Fall Time | 18ns | Same | Same | Same |
| Duty Ratio | 0.1%–99.9% | Same | Same | Same |
| Jitter | ≤200ps rms | Same | Same | Same |
| Arbitrary Waveform Length | 8–16384 dots (CH1), 8–2048 dots (CH2) | Same | Same | Same |
| Vertical Resolution | 14 bits | Same | Same | Same |
| Sweep Time | 100ms–10s | Same | Same | Same |
| Power Meter (Option) | 1kHz–100MHz, ±1dB accuracy | Same | Same | Same |
| Power Output (Option) | 10Hz–200kHz, 8W (sine, 8Ω), 2Ω impedance | Same | Same | Same |
| Dimensions | 262×108×284mm | Same | Same | Same |
| Weight | 2.5kg | Same | Same | Same |
The WPF33521 Series combines frequency response analysis with advanced function generation in a single instrument. Available in 6MHz, 10MHz, 30MHz, and 60MHz models, these devices deliver dual-channel arbitrary waveform generation with 14-bit resolution and 150MSa/s sampling. Featuring built-in modulation functions (AM, FM, PM, FSK, ASK, BPSK, PWM), sweep and burst modes, and a precision frequency counter up to 250MHz, the WPF33521 Series is ideal for signal characterization, circuit testing, and educational labs. Compact and versatile, they include USB/LAN connectivity and optional GPIB for seamless integration.
