WLKATA Mirobot Fruit Picking Line – CTE Training Solution

Product Details

Brand: WLKATA
Model: WL-PL-FP-RGB3-C1
Country Of Origin: USA

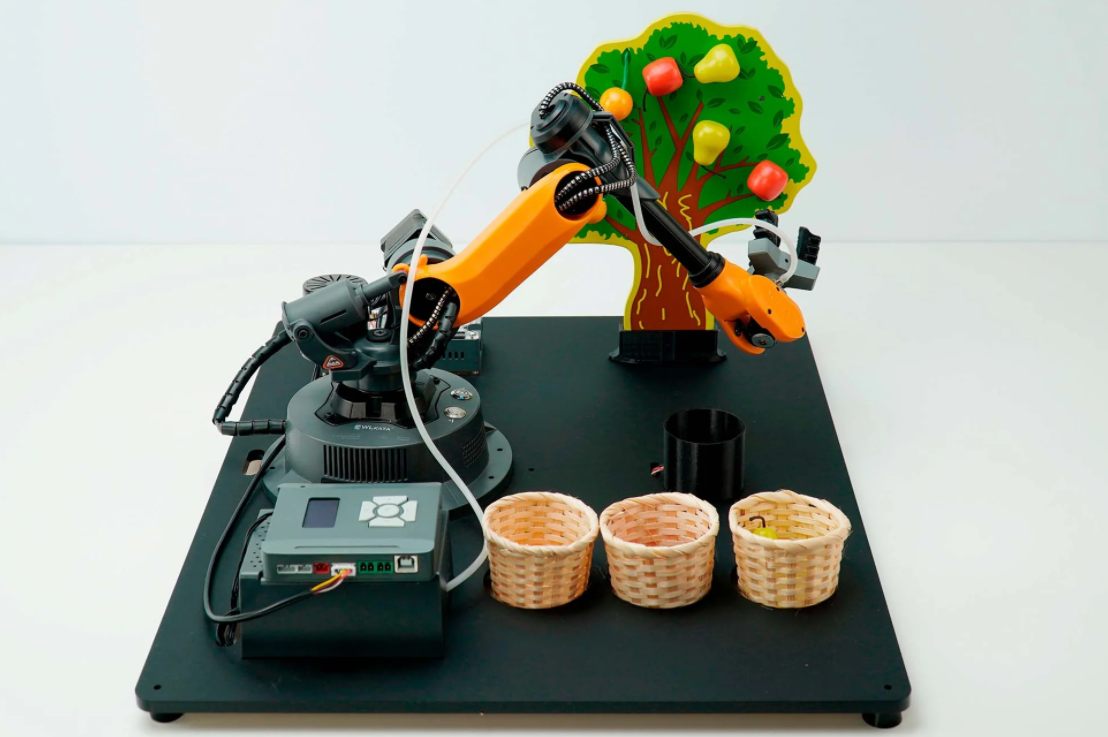

A robotics training kit designed for smart agriculture education. The system combines a 6‑axis desktop robot arm with a color recognition module to automate fruit picking and sorting. Includes a model fruit tree, baskets, and control modules to simulate agricultural harvesting processes. Ideal for cultivating robotics and sensor technology applications in agriculture.

What Is In The Set

1. Wlkata Mirobot Professional Kit X 1
2. Bottom plate X 1
3. Color sensor module X 1
4. Fruit tree kit (fruit tree, fruits in different colors and shapes, cup) X 1 package
6. Main control box X 1
7. A flash disk with document, code and textbook of the Fruit Picking Line (includes experiment textbook for educators, source code, installation handbook, PPT quick start guide, demonstration videos ) X 1

Note: The textbook is in digital version, see info in below

Shipping Info.

Pacakge 1:
WLkata Mirobot Professional Kit X 1:
375*335*290mm (14.8*13.6*11.5inch)

Package 2:
Kit Box of Wlkata Mirobot Fruit Picking Line X 1:
350*195*115mm (13.8*7.7*4.5inch)

Package 3:
Acrylic Bottom Plate X 1:
525*420*30mm (20.6*16.5*1.2inch)

Total Weight Of The Above Packages:
9kg (20 lbs)

TEXTBOOK OF WLKATA MIROBOT FRUIT PICKING LINE

| Textbook Learning Objectives |

Part A: Understanding the essential concepts of 6-axis robotic arm structure, function and control:

-Robotic arm structure
-Robotic arm D-H parameters
-Robotic arm coordinate mode
-Robotic arm end effector
-Electrical parameters of robotic arm;
-Robotic arm basic control
-Command (Blockly, G-code and C++ via Arduino)
-Robot arm programming control logic

Part B: Understanding and practicing the smart factory technology concepts :

-Sorting technology
-Principles of RGB color sensor technology
-Robotic communication with microcontroller

| Textbook Outline |

I Product overview and function

II Production line installation instructions

III Operation instructions

IV Production Line Debugging

V Fruit picking project practices (each of them is detailed with experimental objective, experimental instrument, and experimental procedure):

Project 1: Robot arm teaching programming
Project 2: Communication of Arduino
Project 3: How to use color sensor
Project 4: Fruit Picking and Classification

VI Additional documents:

-Shipping list
-Development documents ( G code instruction set user manual; Ardurino Mirobot library; firmware upgrade package)
-Software installation package
-Daily operation and precautions manual
-PPT slides for educator
- And more...
