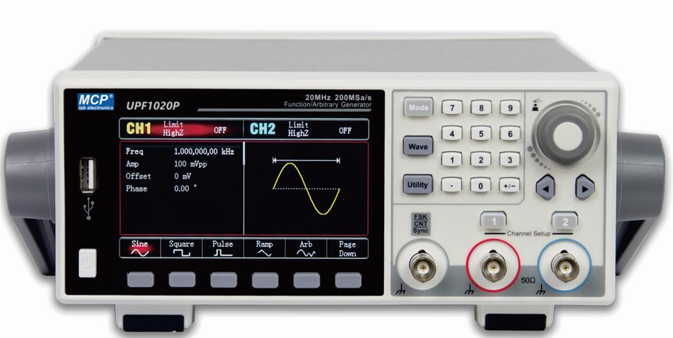

UPF1020P DDS FUNCTION (ARBITRARY) GENERATOR
BDT 51,924/-
Product Details
Brand: MCP
Model: UPF1020P
Country Of Origin: China
Features
-
Dual-channel output
-
Max sine frequency: 20MHz (UPF1020/1020P), 40MHz (UPF1040), 60MHz (UPF1060)
-
Sampling rate: 200MSa/s
-
Vertical resolution: 16 bits
-
6 standard waveforms + 200 built-in arbitrary waveforms
-
Arbitrary waveform editor included
-
Multiple modulation functions: AM, FM, PM, ASK, FSK, PSK, PWM
-
Sweep and burst modes
-
USB Host/Device support
-
4.3-inch TFT LCD (480×272 resolution)
Technical Data (Highlights)
| Specification | UPF1020/1020P | UPF1040 | UPF1060 |
|---|---|---|---|
| Channels | 2 | 2 | 2 |
| Max Sine Frequency | 20MHz | 40MHz | 60MHz |
| Sampling Rate | 200MSa/s | Same | Same |
| Vertical Resolution | 16 bits | Same | Same |
| Output Amplitude (50Ω) | ≤20MHz: 1mVp–10Vpp | ≤40MHz: 1mVp–5Vpp | ≤60MHz: 1mVp–5Vpp |
| Output Amplitude (HighZ) | ≤20MHz: 2mVp–20Vpp | ≤40MHz: 2mVp–10Vpp | ≤60MHz: 2mVp–10Vpp |
| Accuracy | ±(1% + 2mVp) | Same | Same |
| Amplitude Flatness | ≤20MHz: ±0.3dB | ≤40MHz: ±0.5dB | ≤60MHz: ±0.5dB |
| Harmonic Distortion | –60dBc (≤1MHz), –55dBc (≤10MHz), –50dBc (≤40MHz) | Same | Same |
| THD | <0.2% (DC–20kHz, 1Vpp) | Same | Same |
| Spurious Signals | ≤–70dBc (<10MHz), roll-off above | Same | Same |
| Phase Noise | ≤–125dBc/Hz (1MHz, 10kHz offset) | Same | Same |
| Rise/Fall Time | <16ns | Same | Same |
| Duty Ratio | 1%–99% | Same | Same |
| DC Offset Range | ±5V (50Ω), ±10V (HighZ) | Same | Same |
| Storage | 100 groups | Same | Same |
| Interface | USB Host/Device | Same | Same |
| Dimensions | 215×103×316mm | Same | Same |
| Weight | 2.2kg | Same | Same |
| Channels | 2 |
| Max Sine Frequency | 20MHz |
| Sampling Rate | 200MSa/s |
| Vertical Resolution | 16 bits |
| Output Amplitude (50Ω) | ≤20MHz: 1mVp–10Vpp |
| Output Amplitude (HighZ) | ≤20MHz: 2mVp–20Vpp |
| Accuracy | ±(1% + 2mVp) |
| Amplitude Flatness | ≤20MHz: ±0.3dB |
| Harmonic Distortion | –60dBc (≤1MHz), –55dBc (≤10MHz), –50dBc (≤40MHz) |
| THD | <0.2% (DC–20kHz, 1Vpp) |
| Spurious Signals | ≤–70dBc (<10MHz), roll-off above |
| Phase Noise | ≤–125dBc/Hz (1MHz, 10kHz offset) |
| Rise/Fall Time | <16ns |
| Duty Ratio | 1%–99% |
| DC Offset Range | ±5V (50Ω), ±10V (HighZ) |
| Storage | 100 groups |
| Interface | USB Host/Device |
| Dimensions | 215×103×316mm |
| Weight | 2.2kg |
Features
-
Dual-channel output
-
Max sine frequency: 20MHz (UPF1020/1020P), 40MHz (UPF1040), 60MHz (UPF1060)
-
Sampling rate: 200MSa/s
-
Vertical resolution: 16 bits
-
6 standard waveforms + 200 built-in arbitrary waveforms
-
Arbitrary waveform editor included
-
Multiple modulation functions: AM, FM, PM, ASK, FSK, PSK, PWM
-
Sweep and burst modes
-
USB Host/Device support
-
4.3-inch TFT LCD (480×272 resolution)
Technical Data (Highlights)
| Specification | UPF1020/1020P | UPF1040 | UPF1060 |
|---|---|---|---|
| Channels | 2 | 2 | 2 |
| Max Sine Frequency | 20MHz | 40MHz | 60MHz |
| Sampling Rate | 200MSa/s | Same | Same |
| Vertical Resolution | 16 bits | Same | Same |
| Output Amplitude (50Ω) | ≤20MHz: 1mVp–10Vpp | ≤40MHz: 1mVp–5Vpp | ≤60MHz: 1mVp–5Vpp |
| Output Amplitude (HighZ) | ≤20MHz: 2mVp–20Vpp | ≤40MHz: 2mVp–10Vpp | ≤60MHz: 2mVp–10Vpp |
| Accuracy | ±(1% + 2mVp) | Same | Same |
| Amplitude Flatness | ≤20MHz: ±0.3dB | ≤40MHz: ±0.5dB | ≤60MHz: ±0.5dB |
| Harmonic Distortion | –60dBc (≤1MHz), –55dBc (≤10MHz), –50dBc (≤40MHz) | Same | Same |
| THD | <0.2% (DC–20kHz, 1Vpp) | Same | Same |
| Spurious Signals | ≤–70dBc (<10MHz), roll-off above | Same | Same |
| Phase Noise | ≤–125dBc/Hz (1MHz, 10kHz offset) | Same | Same |
| Rise/Fall Time | <16ns | Same | Same |
| Duty Ratio | 1%–99% | Same | Same |
| DC Offset Range | ±5V (50Ω), ±10V (HighZ) | Same | Same |
| Storage | 100 groups | Same | Same |
| Interface | USB Host/Device | Same | Same |
| Dimensions | 215×103×316mm | Same | Same |
| Weight | 2.2kg | Same | Same |
The UPF1000 Series DDS Arbitrary Function Generators deliver high-resolution waveform generation with dual channels, 200MSa/s sampling, and 16-bit vertical resolution. Available in 20MHz, 40MHz, and 60MHz models, these instruments support sine, square, ramp, pulse, noise, DC, and arbitrary waveforms with exceptional accuracy. Featuring advanced modulation (AM, FM, PM, ASK, FSK, PSK, PWM), sweep and burst modes, and a built-in waveform editor, the UPF1000 Series is ideal for precision testing in laboratories, R&D, and educational environments. Compact and efficient, they include USB connectivity and a 4.3-inch TFT LCD for intuitive operation.
