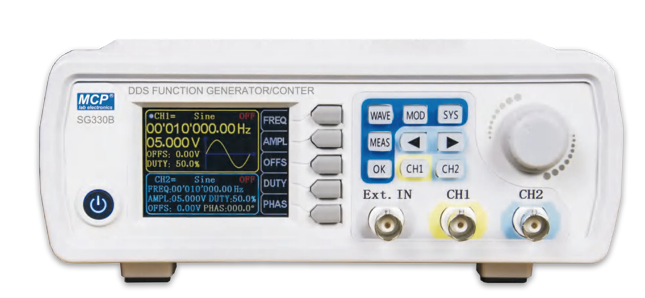

SG330B DDS FUNCTION GENERATOR
BDT 17,510/-
Product Details
Brand: MCP
Model: SG330B
Country Of Origin: China
Features
-
Dual-channel output
-
Max output frequency: 15MHz (SG315B), 30MHz (SG330B), 50MHz (SG350B)
-
Frequency resolution up to 0.01µHz
-
Arbitrary waveform generation capability
-
2.4-inch TFT color display
-
Linear/logarithmic sweep up to 999.9s
-
Pulse duty cycle resolution up to 1%
-
Compact design, high efficiency
-
PC software available
Technical Data (Highlights)
| Specification | SG315B | SG330B | SG350B |
|---|---|---|---|
| Output Frequency | 0–15MHz (sine) | 0–30MHz (sine) | 0–50MHz (sine) |
| Other Waveforms | 0–15MHz (triangle, square) | 0–6MHz (others) | Same |
| Output Amplitude | 2mVp-p–20Vp-p (≤10MHz) | 2mVp-p–10Vp-p (10–30MHz) | 2mVp-p–5Vp-p (≥30MHz) |
| Waveforms | Sine, Square, Triangle, TTL, Arbitrary | Same | Same |
| Sampling Rate | 266MSa/s | Same | Same |
| Resolution | 0.01µHz | Same | Same |
| Accuracy | ≤±20ppm | Same | Same |
| Stability | ≤±0.5% (5h) | Same | Same |
| Amplitude Resolution | 1mV | Same | Same |
| Amplitude Accuracy | ≤±1%+10mV @1kHz, 15Vp-p | Same | Same |
| Offset Range | –9.99V–+9.99V (>2V); –2.5V–+2.5V (0.2–2V); –0.25V–+0.25V (0–0.2V) | Same | Same |
| Phase Range | 0–359.9° | Same | Same |
| Phase Resolution | 0.1° | Same | Same |
| Harmonic Distortion | ≥45dBc (<1MHz) | Same | Same |
| Sine Distortion | ≤0.8% (20Hz–20kHz) | Same | Same |
| Rise Time | ≤25ns | ≤20ns | ≤15ns |
| Duty Cycle Range | 0.1%–99.9% | Same | Same |
| TTL Output | Low <0.3V, High 1–10V | Same | Same |
| Sweep Modes | Linear/Log | Same | Same |
| Sweep Time | 0.1s–999.9s | Same | Same |
| Counter Range | 1Hz–100MHz | Same | Same |
| Storage | 100 slots (M0–M99) | Same | Same |
| Interface | USB | Same | Same |
| Power Supply | DC 5V (adapter) | Same | Same |
| Dimensions | 194×69×180mm | Same | Same |
| Weight | 0.5kg | Same | Same |
| Output Frequency | 0–30MHz (sine) |
| Other Waveforms | 0–6MHz (others) |
| Output Amplitude | 2mVp-p–10Vp-p (10–30MHz) |
| Waveforms | Sine, Square, Triangle, TTL, Arbitrary |
| Sampling Rate | 266MSa/s |
| Resolution | 0.01µHz |
| Accuracy | ≤±20ppm |
| Stability | ≤±0.5% (5h) |
| Amplitude Resolution | 1mV |
| Amplitude Accuracy | ≤±1%+10mV @1kHz, 15Vp-p |
| Offset Range | –9.99V–+9.99V (>2V); –2.5V–+2.5V (0.2–2V); –0.25V–+0.25V (0–0.2V) |
| Phase Range | 0–359.9° |
| Phase Resolution | 0.1° |
| Harmonic Distortion | ≥45dBc (<1MHz) |
| Sine Distortion | ≤0.8% (20Hz–20kHz) |
| Rise Time | ≤20ns |
| Duty Cycle Range | 0.1%–99.9% |
| TTL Output | Low <0.3V, High 1–10V |
| Sweep Modes | Linear/Log |
| Sweep Time | 0.1s–999.9s |
| Counter Range | 1Hz–100MHz |
| Storage | 100 slots (M0–M99) |
| Interface | USB |
| Power Supply | DC 5V (adapter) |
| Dimensions | 194×69×180mm |
| Weight | 0.5kg |
Features
-
Dual-channel output
-
Max output frequency: 15MHz (SG315B), 30MHz (SG330B), 50MHz (SG350B)
-
Frequency resolution up to 0.01µHz
-
Arbitrary waveform generation capability
-
2.4-inch TFT color display
-
Linear/logarithmic sweep up to 999.9s
-
Pulse duty cycle resolution up to 1%
-
Compact design, high efficiency
-
PC software available
Technical Data (Highlights)
| Specification | SG315B | SG330B | SG350B |
|---|---|---|---|
| Output Frequency | 0–15MHz (sine) | 0–30MHz (sine) | 0–50MHz (sine) |
| Other Waveforms | 0–15MHz (triangle, square) | 0–6MHz (others) | Same |
| Output Amplitude | 2mVp-p–20Vp-p (≤10MHz) | 2mVp-p–10Vp-p (10–30MHz) | 2mVp-p–5Vp-p (≥30MHz) |
| Waveforms | Sine, Square, Triangle, TTL, Arbitrary | Same | Same |
| Sampling Rate | 266MSa/s | Same | Same |
| Resolution | 0.01µHz | Same | Same |
| Accuracy | ≤±20ppm | Same | Same |
| Stability | ≤±0.5% (5h) | Same | Same |
| Amplitude Resolution | 1mV | Same | Same |
| Amplitude Accuracy | ≤±1%+10mV @1kHz, 15Vp-p | Same | Same |
| Offset Range | –9.99V–+9.99V (>2V); –2.5V–+2.5V (0.2–2V); –0.25V–+0.25V (0–0.2V) | Same | Same |
| Phase Range | 0–359.9° | Same | Same |
| Phase Resolution | 0.1° | Same | Same |
| Harmonic Distortion | ≥45dBc (<1MHz) | Same | Same |
| Sine Distortion | ≤0.8% (20Hz–20kHz) | Same | Same |
| Rise Time | ≤25ns | ≤20ns | ≤15ns |
| Duty Cycle Range | 0.1%–99.9% | Same | Same |
| TTL Output | Low <0.3V, High 1–10V | Same | Same |
| Sweep Modes | Linear/Log | Same | Same |
| Sweep Time | 0.1s–999.9s | Same | Same |
| Counter Range | 1Hz–100MHz | Same | Same |
| Storage | 100 slots (M0–M99) | Same | Same |
| Interface | USB | Same | Same |
| Power Supply | DC 5V (adapter) | Same | Same |
| Dimensions | 194×69×180mm | Same | Same |
| Weight | 0.5kg | Same | Same |
The SG300B Series DDS Arbitrary Waveform Generators deliver high-precision signal generation with frequency ranges up to 50MHz. Featuring dual-channel outputs, ultra-fine frequency resolution (0.01µHz), and 14-bit waveform accuracy, these compact instruments provide sine, square, triangle, TTL, and arbitrary outputs. With sweep functions, pulse duty cycle resolution down to 0.1%, and USB connectivity, the SG300B Series is ideal for laboratories, R&D, and educational environments requiring versatile and stable waveform generation.
