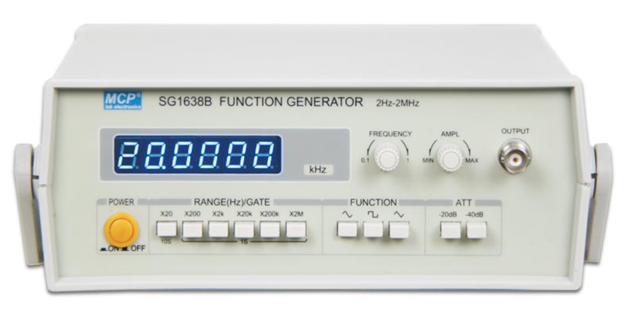

SG1638B MULTIFUNCTION COUNTER & GENERATOR
BDT 10,400/-
Product Details
Brand: MCP
Model: SG1638B
Country Of Origin: China
Features
-
Three selectable waveforms: sine, triangle, square
-
Six frequency ranges, up to 2MHz
Technical Data
-
Output Frequency: 0.2Hz–2MHz
-
Waveforms: Sine, Square, Triangle
-
Output Impedance: 50Ω ±10%
-
Output Amplitude: ≥20Vp-p (1MΩ load); ≥10Vp-p (50Ω load)
-
Output Attenuation: 20dB / 40dB
-
Attenuation Accuracy: ±3%
Sine Wave
-
Distortion Factor: ≤2% (≤2100kHz)
-
Frequency Response: ±0.5dB (≤100kHz), ±1dB (>100kHz)
Square Wave
-
Rise/Fall Time: 100ns (5Vp-p at 1MHz)
Triangle Wave
-
Linearity: 98% (≤100kHz), 95% (>100kHz)
Power Supply
-
110–127VAC ±10%, 220–240VAC ±10%, 50/60Hz ±2Hz
Dimensions
-
225×105×195mm
Weight
-
2kg
| Output Frequency: | 0.2Hz–2MHz |
| Waveforms: | Sine, Square, Triangle |
| Output Impedance: | 50Ω ±10% |
| Output Amplitude: | ≥20Vp-p (1MΩ load); ≥10Vp-p (50Ω load) |
| Output Attenuation: | 20dB / 40dB |
| Attenuation Accuracy: | ±3% |
| Sine Wave: |
Distortion Factor: ≤2% (≤2100kHz) Frequency Response: ±0.5dB (≤100kHz), ±1dB (>100kHz) |
| Square Wave: | Rise/Fall Time: 100ns (5Vp-p at 1MHz) |
| Triangle Wave: | Linearity: 98% (≤100kHz), 95% (>100kHz) |
| Power Supply: | 110–127VAC ±10%, 220–240VAC ±10%, 50/60Hz ±2Hz |
| Dimensions: | 225×105×195mm |
| Weight: | 2kg |
Features
-
Three selectable waveforms: sine, triangle, square
-
Six frequency ranges, up to 2MHz
Technical Data
-
Output Frequency: 0.2Hz–2MHz
-
Waveforms: Sine, Square, Triangle
-
Output Impedance: 50Ω ±10%
-
Output Amplitude: ≥20Vp-p (1MΩ load); ≥10Vp-p (50Ω load)
-
Output Attenuation: 20dB / 40dB
-
Attenuation Accuracy: ±3%
Sine Wave
-
Distortion Factor: ≤2% (≤2100kHz)
-
Frequency Response: ±0.5dB (≤100kHz), ±1dB (>100kHz)
Square Wave
-
Rise/Fall Time: 100ns (5Vp-p at 1MHz)
Triangle Wave
-
Linearity: 98% (≤100kHz), 95% (>100kHz)
Power Supply
-
110–127VAC ±10%, 220–240VAC ±10%, 50/60Hz ±2Hz
Dimensions
-
225×105×195mm
Weight
-
2kg
The SG1638B multifunction counter and generator is a versatile laboratory instrument designed for waveform generation and frequency testing. Supporting sine, square, and triangle outputs up to 2MHz, it delivers stable signals with low distortion and precise attenuation control. With fast square wave rise times, high triangle linearity, and accurate sine response, the SG1638B is ideal for electronics labs, education, and R&D environments. Compact and reliable, it provides consistent performance for signal simulation and testing applications.
