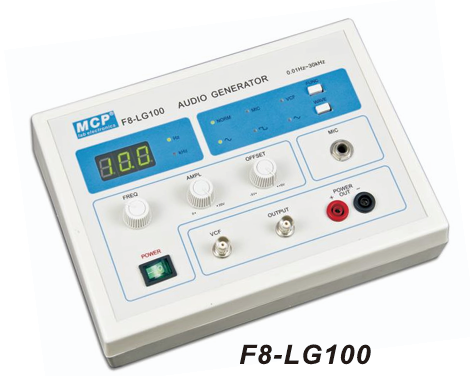

F8-LG100 AUDIO GENERATOR & RF GENERATOR
BDT 0/-
Product Details
Brand: MCP
Model: F8-LG100
Country Of Origin: China
Features
-
DDS technology design, ultra-low power consumption
-
Frequency range: 0.01Hz–30kHz
-
High frequency accuracy: ±5×10⁻⁶
-
High frequency stability: ±1×10⁻⁶
-
Max frequency resolution: 0.01Hz
-
Low distortion sine wave (<0.8%)
-
Audio input and power output
Technical Data
-
Output Frequency: 0.01Hz–30kHz
-
Waveforms: Sine, Square, Triangle
-
Frequency Accuracy: ±5×10⁻⁶
-
Frequency Resolution: 0.01Hz
-
Frequency Stability: ±1×10⁻⁶
-
Output Amplitude: 0.2–20Vp-p (no load)
-
Amplitude Accuracy: ±10% (1kHz, 20Vp-p)
-
Output Impedance: 50Ω ±10%
-
DC Offset: ±5V (no load)
-
Display: 3-digit LED frequency display
-
Sine Distortion: ≤0.8% (1kHz)
-
Square Rise/Fall Time: ≤5µs
-
Triangle Linearity: ≥98% (100Hz–100kHz)
-
Audio Input Range: 20Hz–20kHz
-
Voltage Gain: 0–40dB
-
Power Output: ≥1.5W (4Ω load), ≥3W (8Ω load)
-
VCF Input Voltage: 0–5V
-
VCF Input Impedance: 10kΩ ±10%
-
VCF Frequency Change: 0 to current set frequency
-
VCF Output Amplitude: ≥20Vp-p (no load), ≥18Vp-p (10Ω load)
-
Power Output Impedance: ≤4Ω
-
Power Output Current: ≥0.6A rms
-
Power Supply: 110–127VAC ±10%, 220–240VAC ±10%, 50/60Hz ±2Hz
-
Dimensions: 240×90×170mm
-
Weight: 1.5kg
| Output Frequency: | 0.01Hz–30kHz |
| Waveforms: | Sine, Square, Triangle |
| Frequency Accuracy: | ±5×10⁻⁶ |
| Frequency Resolution: | 0.01Hz |
| Frequency Stability: | ±1×10⁻⁶ |
| Output Amplitude: | 0.2–20Vp-p (no load) |
| Amplitude Accuracy: | ±10% (1kHz, 20Vp-p) |
| Output Impedance: | 50Ω ±10% |
| DC Offset: | ±5V (no load) |
| Display: | 3-digit LED frequency display |
| Sine Distortion: | ≤0.8% (1kHz) |
| Square Rise/Fall Time: | ≤5µs |
| Triangle Linearity: | ≥98% (100Hz–100kHz) |
| Audio Input Range: | 20Hz–20kHz |
| Voltage Gain: | 0–40dB |
| Power Output: | ≥1.5W (4Ω load), ≥3W (8Ω load) |
| VCF Input Voltage: | 0–5V |
| VCF Input Impedance: | 10kΩ ±10% |
| VCF Frequency Change: | 0 to current set frequency |
| VCF Output Amplitude: | ≥20Vp-p (no load), ≥18Vp-p (10Ω load) |
| Power Output Impedance: | ≤4Ω |
| Power Output Current: | ≥0.6A rms |
| Power Supply: | 110–127VAC ±10%, 220–240VAC ±10%, 50/60Hz ±2Hz |
| Dimensions: | 240×90×170mm |
| Weight: | 1.5kg |
Features
-
DDS technology design, ultra-low power consumption
-
Frequency range: 0.01Hz–30kHz
-
High frequency accuracy: ±5×10⁻⁶
-
High frequency stability: ±1×10⁻⁶
-
Max frequency resolution: 0.01Hz
-
Low distortion sine wave (<0.8%)
-
Audio input and power output
Technical Data
-
Output Frequency: 0.01Hz–30kHz
-
Waveforms: Sine, Square, Triangle
-
Frequency Accuracy: ±5×10⁻⁶
-
Frequency Resolution: 0.01Hz
-
Frequency Stability: ±1×10⁻⁶
-
Output Amplitude: 0.2–20Vp-p (no load)
-
Amplitude Accuracy: ±10% (1kHz, 20Vp-p)
-
Output Impedance: 50Ω ±10%
-
DC Offset: ±5V (no load)
-
Display: 3-digit LED frequency display
-
Sine Distortion: ≤0.8% (1kHz)
-
Square Rise/Fall Time: ≤5µs
-
Triangle Linearity: ≥98% (100Hz–100kHz)
-
Audio Input Range: 20Hz–20kHz
-
Voltage Gain: 0–40dB
-
Power Output: ≥1.5W (4Ω load), ≥3W (8Ω load)
-
VCF Input Voltage: 0–5V
-
VCF Input Impedance: 10kΩ ±10%
-
VCF Frequency Change: 0 to current set frequency
-
VCF Output Amplitude: ≥20Vp-p (no load), ≥18Vp-p (10Ω load)
-
Power Output Impedance: ≤4Ω
-
Power Output Current: ≥0.6A rms
-
Power Supply: 110–127VAC ±10%, 220–240VAC ±10%, 50/60Hz ±2Hz
-
Dimensions: 240×90×170mm
-
Weight: 1.5kg
The F8-LG100 Audio Generator is a precision DDS-based signal source designed for audio testing and laboratory applications. With a frequency range of 0.01Hz–30kHz, ultra-high accuracy, and stability, it delivers clean sine, square, and triangle waveforms. Featuring low distortion (<0.8%), adjustable DC offset, and audio input with power output capability, the F8-LG100 is ideal for amplifier testing, audio equipment calibration, and educational use. Compact and efficient, it includes a 3-digit LED display and supports up to 3W output power, making it a versatile tool for engineers and technicians.
