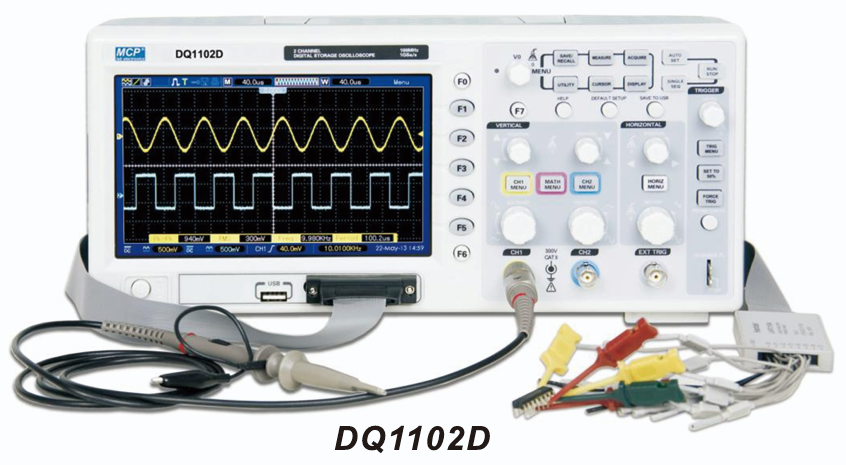

DQ1102D DIGITAL STORAGE OSCILLOSCOPE
BDT 88,531/-
Product Details
Brand: MCP
Model: DQ1102D
Country Of Origin: China
Features
-
Digital Storage Oscilloscope with integrated logic analyzer
-
Models: DQ1062D (60MHz), DQ1102D (100MHz), DQ1202D (200MHz)
-
2 oscilloscope channels + 16 logic analyzer channels
-
Real-time sampling rate: 1GSa/s
-
Equivalent sampling rate: 25–50GSa/s
-
Recording length: 1024K (oscilloscope), 512K (logic analyzer)
-
7-inch wide-screen TFT LCD, 800×480 resolution, 64K color, adjustable contrast (16 levels)
-
USB host/device interface, LAN optional
-
Built-in FFT and math functions (+, –, ×, ÷)
-
Cursor and auto-measurement functions
-
Trigger modes: edge, pulse, video, alternate, slope, over time
Technical Data (Highlights)
| Specification | DQ1062D | DQ1102D | DQ1202D |
|---|---|---|---|
| Bandwidth | 60MHz | 100MHz | 200MHz |
| Rise Time | ≤5.8ns | ≤3.5ns | ≤1.8ns |
| Channels | 2 + 16 logic | 2 + 16 logic | 2 + 16 logic |
| Vertical Sensitivity | 2mV/div–5V/div | Same | Same |
| Vertical Resolution | 8 bits | Same | Same |
| DC Gain Accuracy | ±4% | ±3% | ±3% |
| DC Measurement Accuracy | ±(3%×Rdg + 0.1div + 1mV) | Same | Same |
| SEC/DIV Range | 2ns–40s/div | Same | Same |
| Input Coupling | DC, AC, GND | Same | Same |
| Input Impedance | 1MΩ ±2%, 20pF ±3pF | Same | Same |
| Probe Attenuation | 1X, 10X, 100X, 1000X | Same | Same |
| Max Input Voltage | 300V (DC+AC peak) | Same | Same |
| Logic Analyzer Specs | 200kΩ input impedance, 500MHz max sampling, ±60V max input, ±8V threshold, TTL/CMOS/ECL compatible | Same | Same |
| Trigger System | Edge, pulse width, code-type, duration, queue, repeat | Same | Same |
| Cursor Functions | ΔV, ΔT, 1/ΔT (Hz) | Same | Same |
| Auto Measurements | Vrms, Vavg, Vpp, Vmax, Vmin, Vtop, Vmid, Vamp, Period, Freq, Rise, Fall, Width, Duty, Delay, FRF, FFR, LRR, LRF, LFR, LFF | Same | Same |
| Power Supply | 100–120VAC ±10%, 45–440Hz; 120–240VAC ±10%, 45–66Hz; 30VA max, CAT II | Same | Same |
| Dimensions | 315×142×110mm | Same | Same |
| Weight | 2.1kg | Same | Same |
| Accessories | Manual, power cord, USB cable, 2 probes, software CD-ROM, logic analyzer probe | Same | Same |
-
CQ5640/CQ5660 (Analog)
-
SDO1000 Series (Entry Digital)
-
SDO210/220 Series (Mid Digital)
-
SDO2000 Series (Advanced Digital)
-
DQ1000D Series (Mixed-Signal Digital + Logic Analyzer)
| Bandwidth | 100MHz |
| Rise Time | ≤3.5ns |
| Channels | 2 + 16 logic |
| Vertical Sensitivity | 2mV/div–5V/div |
| Vertical Resolution | 8 bits |
| DC Gain Accuracy | ±3% |
| DC Measurement Accuracy | ±(3%×Rdg + 0.1div + 1mV) |
| SEC/DIV Range | 2ns–40s/div |
| Input Coupling | DC, AC, GND |
| Input Impedance | 1MΩ ±2%, 20pF ±3pF |
| Probe Attenuation | 1X, 10X, 100X, 1000X |
| Max Input Voltage | 300V (DC+AC peak) |
| Logic Analyzer Specs | 200kΩ input impedance, 500MHz max sampling, ±60V max input, ±8V threshold, TTL/CMOS/ECL compatible |
| Trigger System | Edge, pulse width, code-type, duration, queue, repeat |
| Cursor Functions | ΔV, ΔT, 1/ΔT (Hz) |
| Auto Measurements | Vrms, Vavg, Vpp, Vmax, Vmin, Vtop, Vmid, Vamp, Period, Freq, Rise, Fall, Width, Duty, Delay, FRF, FFR, LRR, LRF, LFR, LFF |
| Power Supply | 100–120VAC ±10%, 45–440Hz; 120–240VAC ±10%, 45–66Hz; 30VA max, CAT II |
| Dimensions | 315×142×110mm |
| Weight | 2.1kg |
| Accessories | Manual, power cord, USB cable, 2 probes, software CD-ROM, logic analyzer probe |
Features
-
Digital Storage Oscilloscope with integrated logic analyzer
-
Models: DQ1062D (60MHz), DQ1102D (100MHz), DQ1202D (200MHz)
-
2 oscilloscope channels + 16 logic analyzer channels
-
Real-time sampling rate: 1GSa/s
-
Equivalent sampling rate: 25–50GSa/s
-
Recording length: 1024K (oscilloscope), 512K (logic analyzer)
-
7-inch wide-screen TFT LCD, 800×480 resolution, 64K color, adjustable contrast (16 levels)
-
USB host/device interface, LAN optional
-
Built-in FFT and math functions (+, –, ×, ÷)
-
Cursor and auto-measurement functions
-
Trigger modes: edge, pulse, video, alternate, slope, over time
Technical Data (Highlights)
| Specification | DQ1062D | DQ1102D | DQ1202D |
|---|---|---|---|
| Bandwidth | 60MHz | 100MHz | 200MHz |
| Rise Time | ≤5.8ns | ≤3.5ns | ≤1.8ns |
| Channels | 2 + 16 logic | 2 + 16 logic | 2 + 16 logic |
| Vertical Sensitivity | 2mV/div–5V/div | Same | Same |
| Vertical Resolution | 8 bits | Same | Same |
| DC Gain Accuracy | ±4% | ±3% | ±3% |
| DC Measurement Accuracy | ±(3%×Rdg + 0.1div + 1mV) | Same | Same |
| SEC/DIV Range | 2ns–40s/div | Same | Same |
| Input Coupling | DC, AC, GND | Same | Same |
| Input Impedance | 1MΩ ±2%, 20pF ±3pF | Same | Same |
| Probe Attenuation | 1X, 10X, 100X, 1000X | Same | Same |
| Max Input Voltage | 300V (DC+AC peak) | Same | Same |
| Logic Analyzer Specs | 200kΩ input impedance, 500MHz max sampling, ±60V max input, ±8V threshold, TTL/CMOS/ECL compatible | Same | Same |
| Trigger System | Edge, pulse width, code-type, duration, queue, repeat | Same | Same |
| Cursor Functions | ΔV, ΔT, 1/ΔT (Hz) | Same | Same |
| Auto Measurements | Vrms, Vavg, Vpp, Vmax, Vmin, Vtop, Vmid, Vamp, Period, Freq, Rise, Fall, Width, Duty, Delay, FRF, FFR, LRR, LRF, LFR, LFF | Same | Same |
| Power Supply | 100–120VAC ±10%, 45–440Hz; 120–240VAC ±10%, 45–66Hz; 30VA max, CAT II | Same | Same |
| Dimensions | 315×142×110mm | Same | Same |
| Weight | 2.1kg | Same | Same |
| Accessories | Manual, power cord, USB cable, 2 probes, software CD-ROM, logic analyzer probe | Same | Same |
-
CQ5640/CQ5660 (Analog)
-
SDO1000 Series (Entry Digital)
-
SDO210/220 Series (Mid Digital)
-
SDO2000 Series (Advanced Digital)
-
DQ1000D Series (Mixed-Signal Digital + Logic Analyzer)
The DQ1000D Series digital storage oscilloscopes combine high-speed waveform capture with integrated logic analysis, making them versatile tools for mixed-signal testing. Available in 60MHz, 100MHz, and 200MHz bandwidths, these scopes feature 1GSa/s real-time sampling, 1024K recording length, and a 7-inch color TFT display. With 2 oscilloscope channels plus 16 logic analyzer channels, engineers can simultaneously analyze analog and digital signals. Advanced trigger modes, FFT analysis, and USB/LAN connectivity make the DQ1000D Series ideal for embedded system debugging, R&D, and educational labs.
