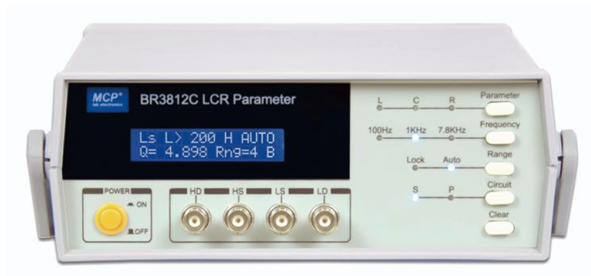

BR3812C LCR METER
BDT 15,326/-
Product Details
Brand: MCP
Model: BR3812C
Country Of Origin: China
Features
-
Maximum testing frequency: 7.8kHz
-
Automatic detection of component type
-
Supports serial and parallel connection modes
-
Compact casing design
Technical Data
| Parameter | Frequency | Measuring Range | Accuracy |
|---|---|---|---|
| Inductance (L) | 100Hz: 1µH–9999H | ±[Looks like the result wasn't safe to show. Let's switch things up and try something else!] |
|
| 1kHz: 0.1µH–999.9H | ±[Looks like the result wasn't safe to show. Let's switch things up and try something else!] |
||
| 7.8kHz: 0.01µH–99.99H | ±[Looks like the result wasn't safe to show. Let's switch things up and try something else!] |
||
| Capacitance (C) | 100Hz: 100pF–200mF | ±[Looks like the result wasn't safe to show. Let's switch things up and try something else!] |
|
| 1kHz: 10pF–20mF | ±[Looks like the result wasn't safe to show. Let's switch things up and try something else!] |
||
| 7.8kHz: 0.5pF–2mF | ±[Looks like the result wasn't safe to show. Let's switch things up and try something else!] |
||
| Resistance (R) | DC | 0.1mΩ–19.99MΩ | ±[Looks like the result wasn't safe to show. Let's switch things up and try something else!] |
| Q Factor | — | 0.01–999 | 100Hz/1kHz: ±[0.5±0.25(Qx+1/Qx)]%; 7.8kHz: ±[0.5±0.30(Qx+1/Qx)]% |
| D Factor | — | 0.01%–999% | 100Hz/1kHz: ±0.010(1+Dx²); 7.8kHz: ±0.015(1+Dx²) |
| Inductance (L) | 100Hz: 1µH–9999H |
| Inductance (L) | 1kHz: 0.1µH–999.9H |
| Inductance (L) | 7.8kHz: 0.01µH–99.99H |
| Capacitance (C) | 100Hz: 100pF–200mF |
| Capacitance (C) | 1kHz: 10pF–20mF |
| Capacitance (C) | 7.8kHz: 0.5pF–2mF |
| Resistance (R) | 0.1mΩ–19.99MΩ |
| Q Factor | 0.01–999 |
| D Factor | 0.01%–999% |
| Signal level: | 0.4Vp-p ±10% (no load) |
| Measurement speed: | 200ms |
| Operating temperature: | 0–40°C, ≤85%RH |
| Power supply: | 220V ±10%, 50Hz ±5% |
| Dimensions: | 330×100×310mm |
| Weight: | 3.3kg |
Features
-
Maximum testing frequency: 7.8kHz
-
Automatic detection of component type
-
Supports serial and parallel connection modes
-
Compact casing design
Technical Data
| Parameter | Frequency | Measuring Range | Accuracy |
|---|---|---|---|
| Inductance (L) | 100Hz: 1µH–9999H | ±[Looks like the result wasn't safe to show. Let's switch things up and try something else!] |
|
| 1kHz: 0.1µH–999.9H | ±[Looks like the result wasn't safe to show. Let's switch things up and try something else!] |
||
| 7.8kHz: 0.01µH–99.99H | ±[Looks like the result wasn't safe to show. Let's switch things up and try something else!] |
||
| Capacitance (C) | 100Hz: 100pF–200mF | ±[Looks like the result wasn't safe to show. Let's switch things up and try something else!] |
|
| 1kHz: 10pF–20mF | ±[Looks like the result wasn't safe to show. Let's switch things up and try something else!] |
||
| 7.8kHz: 0.5pF–2mF | ±[Looks like the result wasn't safe to show. Let's switch things up and try something else!] |
||
| Resistance (R) | DC | 0.1mΩ–19.99MΩ | ±[Looks like the result wasn't safe to show. Let's switch things up and try something else!] |
| Q Factor | — | 0.01–999 | 100Hz/1kHz: ±[0.5±0.25(Qx+1/Qx)]%; 7.8kHz: ±[0.5±0.30(Qx+1/Qx)]% |
| D Factor | — | 0.01%–999% | 100Hz/1kHz: ±0.010(1+Dx²); 7.8kHz: ±0.015(1+Dx²) |
The BR3812C LCR Meter is a compact, high-precision instrument for measuring inductance, capacitance, and resistance across multiple test frequencies up to 7.8kHz. With automatic component type detection, serial/parallel connection modes, and fast measurement speed (200ms), it ensures efficient and accurate testing. Supporting wide ranges for L, C, R, Q, and D factors, the BR3812C is ideal for laboratories, R&D, and production environments requiring reliable component characterization.
