Augmented Reality Welding Simulator
BDT 4,455,000/-
BDT 4,500,000/-
Product Details
Brand: SEABERY
Model: AT Weldsim
Country of Origin: Spain
Country of Manufacture: Spain
-
Real welding torches: GTAW, GMAW, SMAW
-
1 to 25 mm thickness
-
5 physical welding coupons:
-
Overlapped plate
-
V-butt plate
-
T-angled plate to plate
-
V-butt pipe
-
T-angled pipe to plate
-
-
Advanced features: Bend test and safety checks
-
Materials: Aluminium, carbon steel and stainless steel
-
E-learning and analysis module
-
National and international content and curricula
-
Hindi, English and other languages available
| DIMENSIONS (WITHOUT ACCESSORIES) | 259x424x236mm |
| WEIGHT (WITHOUT HELMET) | 8.8 kg |
| WEIGHT (WITH HELMET) | 9.8 kg |
| WELDING PROCESSES SUPPORTED |
GMAW (MIG/MAG) & FCAW G/S, SMAW (MMA Electrode), GTAW (TIG) |
| WELDING POSITIONS | 1F, 2F, 3F, 4F, 1G, 2G, 3G, 4G, 5G, 5F, 6G, 6F |
| DEFAULT WELDING JOINTS INCLUDED |
YES, Education Welding Joints: Overlapped plate, V-Butt plate, T-Angled plate to plate, V-Butt pipe, T-Angled pipe to plate |
| REAL WELDING TORCHES | Yes |
| WELDING SOUNDS | Recorded in a real welding lab |
| ACCESORIES |
Filler rod, welding gloves, Wi-Fi antennas. OPTIONAL: Workstand, lab server including router, and flight case |
| VOLTAGE SELECTION | YES, it can be modified during the exercise |
| INTENSITY (AMPERAGE) SELECTION | YES, it can be modified during the exercise |
| SHIELDING GAS SELECTION | YES, the flow can be modified during the exercise |
| WIRE SPEED SELECTION |
YES, in GMAW (MIG/MAG) and FCAW, it can be modified during the exercise |
| COUPON MATERIAL SELECTION | Carbon steel, stainless steel, aluminum |
| GAS COMPOSITION |
MATERIAL - GMAW - GTAW - FCAW Carbon Steel - Argon - Co², CO² Argon Argon - Co², CO² Aluminum - Argon Argon Stainless Steel Argon - O² Argon |
| COUPON THICKNESS SELECTION |
3mm, 6mm, 10 mm 1mm, 15mm,20 mm & 25mm |
| ELECTRODE STICK /FILLER ROD DIAMETER SELECTION |
GMAW: carbon and stainless steel: 0.8mm 1mm 1.2 mm aluminum: 1mm 1.2mm SMAW: carbon and stainless steel: 2.5 mm 3.25mm 4mm GTAW: carbon steel, stainless steel and aluminum: 2mm 2.4 mm 3.2 mm FCAW: carbon steel: 1.0, 1.2mm |
| ELECTRODE STICK / FILLER ROD SELECTION |
GMAW: carbon steel: ER70S-6 stainless steel: E316LSi aluminum: ER5356 SMAW: carbon steel: E7018, E6010, E6013 stainless steel: E316L GTAW: carbon steel: ER70S-6 stainless steel: ER316L Aluminum: ER5356 FCAW: carbon steel: E71T-1, E71T-7 |
| MULTIPASS EXERCISE WITH DIFFERENT PROCESSES | YES |
| WELDING PROCESSES | Straight, Triangle, Convex, Circle, Zigzag |
| WELDING PATTERN/WEAVE | Push / Drag |
| TRANSFERENCE MODES | Short circuit, globular, spray |
| DEFECTS ANALYZED | Porosity, spatter, slag inclusion |
| REPORT FEATURES |
CTWD, Travel Speed, Work Angle, Travel Angle, Trajectory, Voltage, Wirefeed Speed, Technical Parameters, Equipment Settings |
| ANALYSIS MODULE | YES |
| ON-SCREEN HELP GUIDES | YES, they can be added/removed |
| PREDEFINED WELDING EXERCISES | YES, AT Welding curricula |
| LMS APPLICATION |
YES, E-Learning: manage students, create curricula and exercises and monitor the training |
| LMS APPLICATION: STUDENTS ACCESS | YES, Visualize contents, progress, take tests |
| REMOTE TRAINING / DISTANCE LEARNING | Yes |
| STUDENT PERSONALIZED PROFILE | YES, practices report and progression |
| CUSTOMIZED PRACTICES | YES, customized in E-Learning |
| POSSIBILITY TO TRY DIFFERENT SETTINGS DURING THE EXERCISE AND THEIR EFFECTS IN THE WELDING BEAD | YES |
| VISION TECHNOLOGY | Augmented Reality |
| PIECE CAN BE MANIPULATED SEPARATELY |
YES, it can be manipulated at any time during the exercise to perform a visual inspection of the welding bead. The workpiece is not attached in any way to the workstand |
| REAL ENVIRONMENT DURING SIMULATION | YES |
| UNIT CAN BE USED WITH GLASSES | YES |
| POWER SUPPLY | NOX Hummer Bronce 500W |
| PROCESSOR | IntelÂŽ Coreâĸ i5-9500E |
| CHIPSET | Intel H310 |
| RAM | 8+8 GB DDR4 |
| GRAPHIC CARD | Intel UHD Graphics |
| HARD DISK | M.2 SSD 128Gb |
| AUDIO | Realtek Audio |
| OPERATING SYSTEM | Seabery Operating System optimized for AT Weldsim |
| BACK PANEL PORTS |
1 x HDMI 4 x USB 2 x Ethernet 2 x Wifi Antennas 1 x jack |
| AR VISION MODULE RESOLUTION |
MIPI LCD 4,7â HDMI Display input up to 1280x720 Ultra-low video distortion 24-bit True Colour |
| CAMERAS RESOLUTION (X2) | 640x480 / 800x600 Autofocus |
| OPERATING TEMPERATURE | -30 ~ +70Âē Celsius |
| HUMIDITY | 10 to 90 percent relative humidity non-condensing |
| UPDATES |
Software updates and bugfixing (Same version) included |
| REMOTE MAINTENACE | Yes |
| REGULATIONS |
ISO 9001 Quality Management System ISO 14001 Environmental Management System |
| WARRANTY | 1 year. Up to 2 more years optional |
| INSTALLATION TYPE | On-Premise |

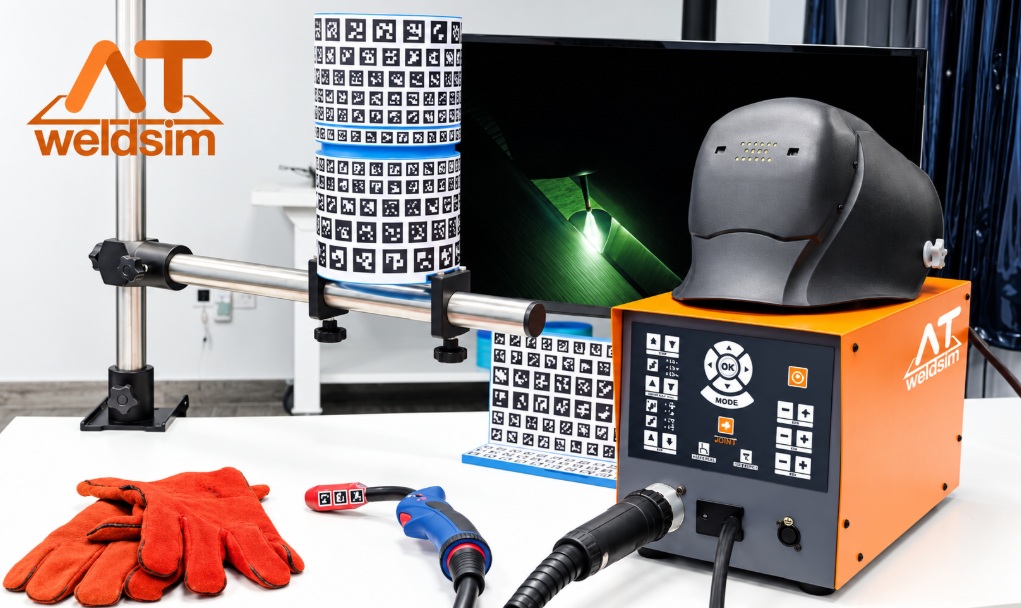

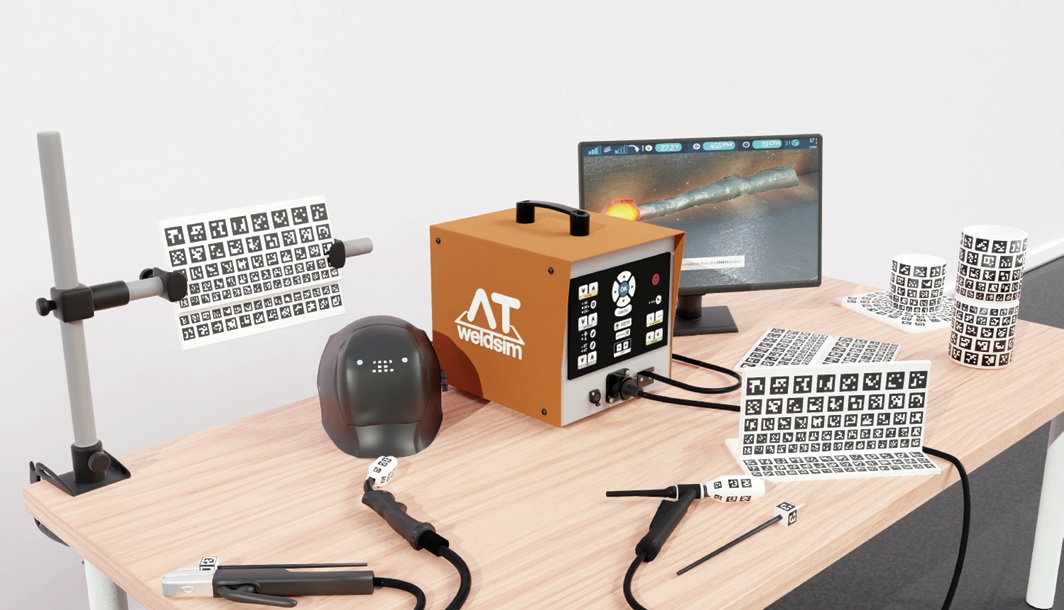

AT weldsim Welding Simulator
The AT weldsim Welding Simulator is an advanced technology-based training system designed to develop practical welding skills in a safe, controlled and interactive environment. It enables students and trainees to practise different welding processes using real welding torches without being exposed to the hazards associated with conventional welding.
The simulator supports GTAW (TIG), GMAW (MIG) and SMAW (Stick) welding processes. It accommodates material thicknesses ranging from 1 mm to 25 mm and allows users to practise welding on aluminium, carbon steel and stainless steel.
Key Features:
• Supports real GTAW, GMAW and SMAW welding torches
• Suitable for material thicknesses from 1 mm to 25 mm
• Training options for aluminium, carbon steel and stainless steel
• E-learning and performance-analysis module
• Advanced bend-test evaluation and safety checks
• Supports national and international welding curricula
• Training content available in English, Hindi and other languages
Physical Welding Coupons:
• Overlapped plate
• V-butt plate
• T-angled plate-to-plate joint
• V-butt pipe
• T-angled pipe-to-plate joint
The integrated analysis module helps instructors evaluate trainee performance, identify mistakes and provide appropriate guidance for improvement. Its structured e-learning content supports both classroom instruction and individual practice.
The AT weldsim Welding Simulator is ideal for polytechnic institutes, technical schools, vocational training centres, universities, industrial training facilities and professional welding laboratories. It provides a modern and effective platform for building welding knowledge, improving practical techniques and developing workplace safety awareness.
AT weldsim Welding Simulator – Advanced Virtual Welding Training System
The AT weldsim Welding Simulator is an advanced training solution designed to develop practical welding skills in a safe, controlled and interactive environment. It is suitable for polytechnic institutes, technical schools, vocational training centres, universities, industrial training facilities and professional welding laboratories.
The simulator supports real GTAW, GMAW and SMAW welding torches, allowing students to practise different welding processes with a realistic training experience. It supports material thicknesses from 1 mm to 25 mm and offers training with aluminium, carbon steel and stainless steel.
Five Physical Welding Coupons:
• Overlapped plate
• V-butt plate
• T-angled plate-to-plate joint
• V-butt pipe
• T-angled pipe-to-plate joint
Advanced Training Features:
The system includes bend-test evaluation, safety checks, an e-learning platform and a comprehensive analysis module. These features help instructors monitor student performance, identify errors and provide effective guidance for skill improvement.
AT weldsim supports national and international welding content and curricula, making it suitable for academic and professional training programmes. Training materials are available in Hindi, English and other languages for improved accessibility.
The AT weldsim Virtual Welding Simulator helps institutions establish a modern welding training laboratory while improving learning efficiency, practical understanding and workplace safety awareness.
For AT weldsim Welding Simulator prices, technical specifications, quotations and supply in Bangladesh, contact Ample Lab—your trusted supplier of educational, engineering and technical laboratory equipment.
