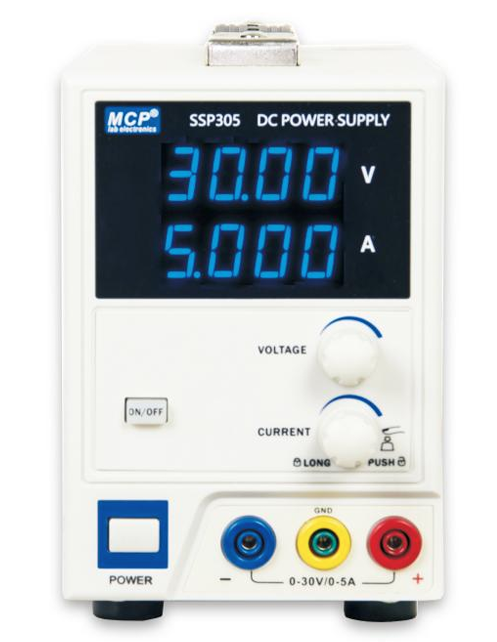

SSP305 Digital Storage & Adjustable DC Linear Power Supply
BDT 13,140/-
Product Details
Brand: MCP
Model: SSP305
Country Of Origin: China
Features
-
Coded voltage and current adjustment
-
Voltage and current preset function
-
CV/CC auto switching
-
4‑digit voltage and current LED display
-
Output off function
-
Low ripple and noise
-
Output locking function
Specifications
-
Load regulation: CV ≤ 0.01% + 3mV CC ≤ 0.1% + 10mA
-
Line regulation: CV ≤ 0.01% + 3mV CC ≤ 0.1% + 3mA
-
Ripple & noise (20Hz–20MHz): CV ≤ 2mVrms CC ≤ 3mArms
-
Voltage resolution: 10mV
-
Current resolution: 1mA
-
Display accuracy (25°C ±5°C): V ≤ ±(0.5% + 20mV) A ≤ ±(0.5% + 10mA)
-
Temperature coefficient: V ≤ 100ppm + 10mV A ≤ 100ppm + 5mA
-
Response time (10% rated load): Voltage rise ≤ 100ms, Voltage drop ≤ 100ms
-
Cooling method: Fan
-
Working temperature: 0–40°C; relative humidity ≤ 85% RH
-
Storage temperature: 0–60°C; relative humidity ≤ 85% RH
-
Dimensions (W×H×D): 100 × 165 × 265 mm
-
Working voltage: AC110V / 220V ±10%, 50Hz/60Hz
| Load regulation: | CV ≤ 0.01% + 3mV CC ≤ 0.1% + 10mA |
| Line regulation: | CV ≤ 0.01% + 3mV CC ≤ 0.1% + 3mA |
| Ripple & noise : | (20Hz–20MHz): CV ≤ 2mVrms CC ≤ 3mArms |
| Voltage resolution: | 10mV |
| Current resolution: | 1mA |
| Display accuracy : | (25°C ±5°C): V ≤ ±(0.5% + 20mV) A ≤ ±(0.5% + 10mA) |
| Temperature coefficient: | V ≤ 100ppm + 10mV A ≤ 100ppm + 5mA |
| Response time: | (10% rated load): Voltage rise ≤ 100ms, Voltage drop ≤ 100ms |
| Cooling method: | Fan |
| Working temperature: | 0–40°C; relative humidity ≤ 85% RH |
| Storage temperature: | 0–60°C; relative humidity ≤ 85% RH |
| Dimensions: | (W×H×D): 100 × 165 × 265 mm |
| Working voltage: | AC110V / 220V ±10%, 50Hz/60Hz |
Features
-
Coded voltage and current adjustment
-
Voltage and current preset function
-
CV/CC auto switching
-
4‑digit voltage and current LED display
-
Output off function
-
Low ripple and noise
-
Output locking function
Specifications
-
Load regulation: CV ≤ 0.01% + 3mV CC ≤ 0.1% + 10mA
-
Line regulation: CV ≤ 0.01% + 3mV CC ≤ 0.1% + 3mA
-
Ripple & noise (20Hz–20MHz): CV ≤ 2mVrms CC ≤ 3mArms
-
Voltage resolution: 10mV
-
Current resolution: 1mA
-
Display accuracy (25°C ±5°C): V ≤ ±(0.5% + 20mV) A ≤ ±(0.5% + 10mA)
-
Temperature coefficient: V ≤ 100ppm + 10mV A ≤ 100ppm + 5mA
-
Response time (10% rated load): Voltage rise ≤ 100ms, Voltage drop ≤ 100ms
-
Cooling method: Fan
-
Working temperature: 0–40°C; relative humidity ≤ 85% RH
-
Storage temperature: 0–60°C; relative humidity ≤ 85% RH
-
Dimensions (W×H×D): 100 × 165 × 265 mm
-
Working voltage: AC110V / 220V ±10%, 50Hz/60Hz
The SSP Series Digital Storage & Adjustable DC Linear Power Supply is engineered for precision laboratory and electronics testing. With coded voltage/current adjustment, CV/CC auto switching, and a 4‑digit LED display, it ensures stable and accurate output. Low ripple and noise performance make it ideal for sensitive circuits, while the compact fan‑cooled design supports reliable long‑term use. Perfect for research labs, universities, and industrial applications requiring dependable DC power.
