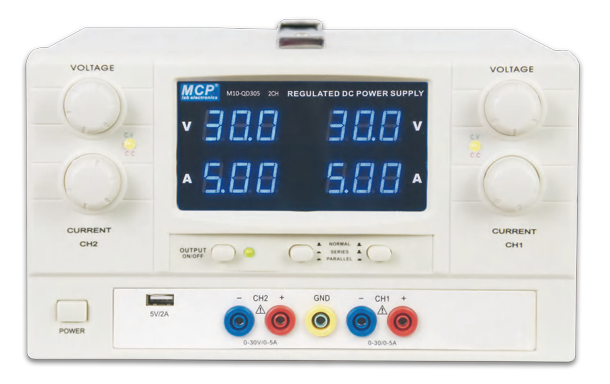

M10-QD305 DUAL OUTPUT ADJUSTABLE DC POWER SUPPLY
BDT 21,453/-
Product Details
Brand: MCP
Model: M10-QD305
Country Of origin: China
Features
-
Output OFF function, voltage preset function
-
Dual independent adjustable DC outputs
-
USB power output (5V/2A)
-
Independent, series, and parallel variety output
-
Constant voltage and constant current
-
Low ripple and noise
-
Four LED displays with 3 digits, selectable for two sets output voltage and current display simultaneously
-
16 hours continuous output with full load
-
Auto tracking output
M10‑QD305 Specifications
-
Line regulation:
-
CV ≤ 5×10−4+3 mV (M10‑QD30XX, M10‑QD60XX)
-
CV ≤ 1×10−4+3 mV (Other models)
-
CC ≤ 4×10−3+3 mA (M10‑QD30XX, M10‑QD60XX)
-
CC ≤ 2×10−3+3 mA (Other models)
-
-
Load regulation:
-
M10‑QD30XX, M10‑QD60XX:
-
CV ≤ 5×10−4+3 mV (≤10A)
-
CV ≤ 1×10−3+3 mV (>10A)
-
CC ≤ 4×10−3+3 mA
-
-
Other models:
-
CV ≤ 1×10−4+3 mV (≤3A)
-
CV ≤ 2×10−4+3 mV (3A–10A)
-
CC ≤ 1×10−3+3 mA (≤3A)
-
CC ≤ 2×10−3+3 mA (3A–10A)
-
-
-
Ripple & noise: CV ≤ 1.5mVrms, CC ≤ 3mArms
-
Display accuracy: ±(0.5%Rdg + 2 digits)
-
Input voltage: 110–127VAC ±10% 60Hz, 220–240VAC ±10% 50Hz (switchable)
| Line regulation: |
CV ≤ 5 × 10 − 4 + 3 mV (M10‑QD30XX, M10‑QD60XX) CV ≤ 1 × 10 − 4 + 3 mV (Other models) CC ≤ 4 × 10 − 3 + 3 mA (M10‑QD30XX, M10‑QD60XX) CC ≤ 2 × 10 − 3 + 3 mA (Other models) |
| Load regulation: |
M10‑QD30XX, M10‑QD60XX: CV ≤ 5 × 10 − 4 + 3 mV (≤10A) CV ≤ 1 × 10 − 3 + 3 mV (>10A) CC ≤ 4 × 10 − 3 + 3 mA |
| Other models: |
CV ≤ 1 × 10 − 4 + 3 mV (≤3A) CV ≤ 2 × 10 − 4 + 3 mV (3A–10A) CC ≤ 1 × 10 − 3 + 3 mA (≤3A) CC ≤ 2 × 10 − 3 + 3 mA (3A–10A) |
| Ripple & noise: | CV ≤ 1.5mVrms, CC ≤ 3mArms |
| Display accuracy: | ±(0.5%Rdg + 2 digits) |
| Input voltage: | 110–127VAC ±10% 60Hz, 220–240VAC ±10% 50Hz (switchable) |
Features
-
Output OFF function, voltage preset function
-
Dual independent adjustable DC outputs
-
USB power output (5V/2A)
-
Independent, series, and parallel variety output
-
Constant voltage and constant current
-
Low ripple and noise
-
Four LED displays with 3 digits, selectable for two sets output voltage and current display simultaneously
-
16 hours continuous output with full load
-
Auto tracking output
M10‑QD305 Specifications
-
Line regulation:
-
CV ≤ 5×10−4+3 mV (M10‑QD30XX, M10‑QD60XX)
-
CV ≤ 1×10−4+3 mV (Other models)
-
CC ≤ 4×10−3+3 mA (M10‑QD30XX, M10‑QD60XX)
-
CC ≤ 2×10−3+3 mA (Other models)
-
-
Load regulation:
-
M10‑QD30XX, M10‑QD60XX:
-
CV ≤ 5×10−4+3 mV (≤10A)
-
CV ≤ 1×10−3+3 mV (>10A)
-
CC ≤ 4×10−3+3 mA
-
-
Other models:
-
CV ≤ 1×10−4+3 mV (≤3A)
-
CV ≤ 2×10−4+3 mV (3A–10A)
-
CC ≤ 1×10−3+3 mA (≤3A)
-
CC ≤ 2×10−3+3 mA (3A–10A)
-
-
-
Ripple & noise: CV ≤ 1.5mVrms, CC ≤ 3mArms
-
Display accuracy: ±(0.5%Rdg + 2 digits)
-
Input voltage: 110–127VAC ±10% 60Hz, 220–240VAC ±10% 50Hz (switchable)
The M10‑QD Series DC Power Supply is a dual‑output laboratory instrument designed for precision testing and development. The M10‑QD305 model offers two independent adjustable DC outputs with constant voltage and constant current modes, plus USB power output (5V/2A). With options for independent, series, and parallel operation, it provides maximum flexibility for electronics labs. Featuring auto tracking output, low ripple and noise, and accurate LED displays, the M10‑QD Series is ideal for universities, research labs, and industrial environments requiring reliable dual DC power.
