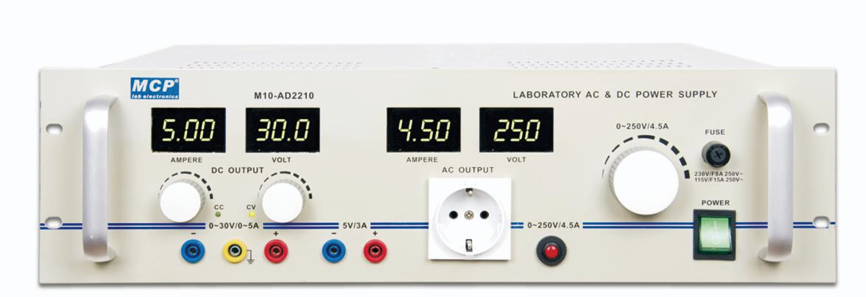

M10-AD2210 LABORATORY AC & DC POWER SUPPLY
BDT 82,368/-
Product Details
Brand: MCP
Model: M10-AD2210
Country Of Origin: China
Features
-
AC and DC combined power supply
-
DC constant voltage and constant current
-
AC output overload protection
-
19‑inch rack mount (3U) and benchtop
-
Output from front panel and rear panel
-
Temperature‑controlled fan

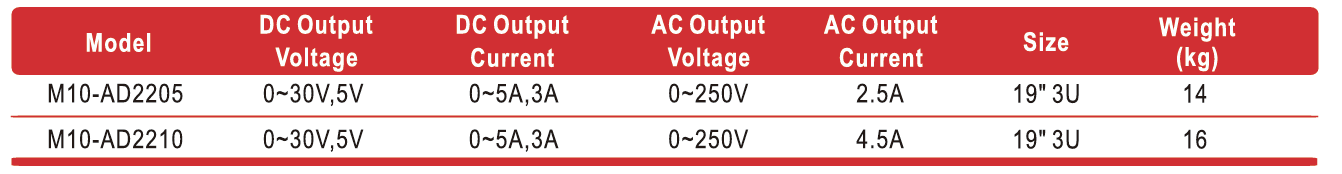

Specifications
DC Output
-
Line regulation: CV ≤ 1×10−4+3 mV, CC ≤ 2×10−3+3 mA
-
Fixed output: 10mV
-
Load regulation: CV ≤ 1×10−4+5 mV, CC ≤ 2×10−3+5 mA
-
Fixed output: 10mV
-
Ripple & noise: CV ≤ 1mVrms, CC ≤ 3mArms, Fixed output 10mV
-
Fixed output accuracy: 2.5%
-
Display accuracy:
-
Voltmeter ±(0.2%Rdg + 2 digits)
-
Ammeter ±(1.0%Rdg + 2 digits)
-
AC Output
-
Display accuracy:
-
Voltmeter ±(1.0%Rdg + 2 digits)
-
Ammeter ±(1.0%Rdg + 2 digits)
-
-
Input voltage: 110–127VAC ±10%, 220–240VAC ±10% (switchable)
| DC Line regulation: | CV ≤ 1 × 10 − 4 + 3 mV , CC ≤ 2 × 10 − 3 + 3 mA (Fixed output: 10mV) |
| Load regulation: | CV ≤ 1 × 10 − 4 + 5 mV , CC ≤ 2 × 10 − 3 + 5 mA (Fixed output: 10mV) |
| Ripple & noise: | CV ≤ 1mVrms, CC ≤ 3mArms, Fixed output 10mV |
| Fixed output accuracy: | 2.5% |
| Display accuracy: | Voltmeter ±(0.2%Rdg + 2 digits) Ammeter ±(1.0%Rdg + 2 digits) |
| AC Display accuracy: | Voltmeter ±(1.0%Rdg + 2 digits) Ammeter ±(1.0%Rdg + 2 digits) |
| Input voltage: | 110–127VAC ±10%, 220–240VAC ±10% (switchable) |
Features
-
AC and DC combined power supply
-
DC constant voltage and constant current
-
AC output overload protection
-
19‑inch rack mount (3U) and benchtop
-
Output from front panel and rear panel
-
Temperature‑controlled fan
Specifications
DC Output
-
Line regulation: CV ≤ 1×10−4+3 mV, CC ≤ 2×10−3+3 mA
-
Fixed output: 10mV
-
Load regulation: CV ≤ 1×10−4+5 mV, CC ≤ 2×10−3+5 mA
-
Fixed output: 10mV
-
Ripple & noise: CV ≤ 1mVrms, CC ≤ 3mArms, Fixed output 10mV
-
Fixed output accuracy: 2.5%
-
Display accuracy:
-
Voltmeter ±(0.2%Rdg + 2 digits)
-
Ammeter ±(1.0%Rdg + 2 digits)
-
AC Output
-
Display accuracy:
-
Voltmeter ±(1.0%Rdg + 2 digits)
-
Ammeter ±(1.0%Rdg + 2 digits)
-
-
Input voltage: 110–127VAC ±10%, 220–240VAC ±10% (switchable)
The M10‑AD22 Series AC & DC Combined Power Supply is a professional‑grade solution for laboratories, universities, and industrial environments. It delivers both AC and DC outputs with constant voltage and constant current control, ensuring stable and precise performance. Designed for flexibility, it supports both rack‑mount (3U) and benchtop use, with outputs available from the front and rear panels. Built‑in overload protection and a temperature‑controlled fan provide safe and reliable operation, while accurate digital metering ensures precise monitoring during testing and development.
