DCL-7000 DIGITAL CIRCUIT LABORATORY

Product Details

Brand: MCP
Model: DCL-7000
Country Of Origin: China

Feature

• Seven circuit boards form 19 experiments

• Step‑by‑step exercises and application with experiment manual

• Suitable for combinational logic, sequential logic, and microprocessor circuit experiment and design

• Ideal tool for learning the basics of digital logic circuits

• Integrated training system, with complete instruction

• Combination with M21‑7000 digital‑analog training system as main unit

• Expandability and flexibility of experiments greatly increased by large breadboard

• Boards can be changed easily

The DCL‑7000 digital circuit laboratory is a comprehensive and self‑contained system suitable for tuition and experimentation with a range of digital electronics circuits. All necessary equipment for digital logic experiments such as power supply, signal generator, switches and displays are built‑in on the main unit. The 7 circuit boards cover a wide variety of essential topics in the field of digital logic. It is a time and cost saving device for both students’ experiment and researchers interested in developing and testing circuit prototypes.

Specification

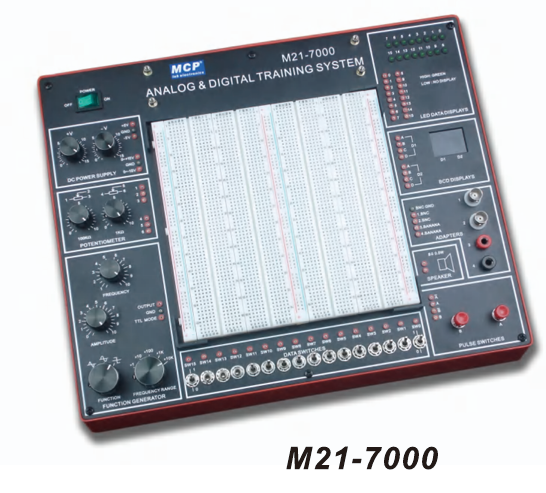

I. MAIN UNIT M21‑7000

1. SOLDERLESS BREADBOARD: 2820 tie points nickel plated contact, supports DIP sizes and AWG #22–30 wires, replaceable and connectable with demonstration panel.

2. DC POWER SUPPLY: +5V 1A fixed output ±15V 1A fixed output 0–+15V 1A variable output 0––15V 1A variable output

3. POTENTIOMETERS: VR1 = 1kΩ VR2 = 100kΩ

4. FUNCTION GENERATOR: Frequency ranges: 1Hz–10Hz, 10Hz–100Hz, 100Hz–1kHz, 1kHz–10kHz, 10kHz–100kHz Amplitude: Sine/Triangle/Square 0–10 Vpp variable, TTL 4 Vpp

5. SIXTEEN BITS DATA SWITCHES: 16 toggle switches with HI/LO logic outputs

6. TWO PULSE SWITCHES: Debounced pushbuttons with outputs (A, A̅, B, B̅)

7. SPEAKER: 2.5 inch, 8Ω, 0.5W

8. FOUR CHANNEL ADAPTOR: Banana sockets and BNC jacks, changeable pins

9. TWO DIGITS OF 7 SEGMENT LED DISPLAY: Numerical output display

10. SIXTEEN BITS LED DISPLAY: 16 red LEDs for HI/LO logic indication

II. DTS CIRCUIT BOARDS (DTS‑001 to DTS‑007)

• DTS‑001: Logic gates circuit

• DTS‑002: Combinational logic circuit‑1

• DTS‑003: Combinational logic circuit‑2

• DTS‑004: Combinational logic circuit‑3

• DTS‑005: Clock generator circuit

• DTS‑006: Sequential logic circuit

• DTS‑007: Memory/converter circuit

III. Experiments (19 total) Transistor switching, TTL/CMOS gate tests, logic functions, comparators, arithmetic circuits, parity generator, encoder/decoder, pulse generation, multivibrators, triggers, 555 timer, flip‑flops, shift registers, counters, RAM applications, D/A and A/D conversion.

IV. GENERAL Accessories: Power cord, pin leads (10cm ×20, 20cm ×20), user manual Input Voltage: 110–127VAC ±10% 60Hz / 220–240VAC ±10% 50Hz switchable Dimensions: Main unit 334×95×258mm, Circuit board 165×170mm Weight: Main unit 2.5kg, Circuit board 0.3kg
