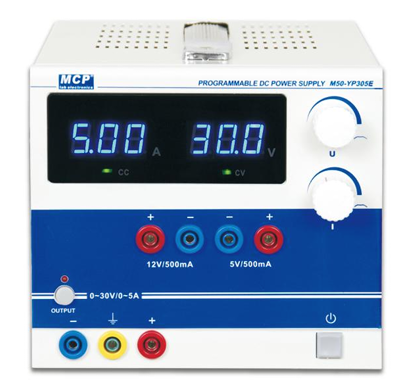

M50-YP305E MULTI-OUTPUTS PROGRAMMABLE DC POWER SUPPLY
BDT 29,520/-
Product Details
Brand: MCP
Model: M50-YP305E
Country Of origin: China
Features
-
One adjustable output and two fixed outputs
-
Output OFF function
-
LED digital display and setting
-
Standard USB interface
-
Constant voltage and constant current
-
Aluminium alloy panel
Specifications
-
Line regulation:
-
CV ≤ 1×10−4+3 mV
-
CC ≤ 2×10−3+3 mA
-
Fixed output: 1%
-
-
Load regulation:
-
CV ≤ 1×10−4+4 mV
-
CC ≤ 2×10−3+5 mA
-
Fixed output: 1%
-
-
Ripple & noise:
-
CV ≤ 3mVrms
-
CC ≤ 3mArms
-
Fixed output: 10mV
-
-
Fixed output accuracy: 2.5%
-
Display accuracy:
-
Voltmeter ±(0.2%Rdg + 2 digits)
-
Ammeter ±(1.0%Rdg + 2 digits)
-
-
Input voltage: 110–127VAC ±10% 60Hz, 220–240VAC ±10% 50Hz (switchable)
| Line regulation: |
CV1×10−4+3mV CC2×10−3+3mA Fixed output: 1% |
| Load regulation: |
CV1×10−4+4mV CC2×10−3+5mA Fixed output: 1% |
| Ripple & noise: |
CV ≤ 3mVrms CC ≤ 3mArms Fixed output: 10mV |
| Fixed output accuracy: | 2.5% |
| Display accuracy: |
Voltmeter ±(0.2%Rdg + 2 digits) Ammeter ±(1.0%Rdg + 2 digits) |
| Input voltage: | 110–127VAC ±10% 60Hz, 220–240VAC ±10% 50Hz (switchable) |
Features
-
One adjustable output and two fixed outputs
-
Output OFF function
-
LED digital display and setting
-
Standard USB interface
-
Constant voltage and constant current
-
Aluminium alloy panel
Specifications
-
Line regulation:
-
CV ≤ 1×10−4+3 mV
-
CC ≤ 2×10−3+3 mA
-
Fixed output: 1%
-
-
Load regulation:
-
CV ≤ 1×10−4+4 mV
-
CC ≤ 2×10−3+5 mA
-
Fixed output: 1%
-
-
Ripple & noise:
-
CV ≤ 3mVrms
-
CC ≤ 3mArms
-
Fixed output: 10mV
-
-
Fixed output accuracy: 2.5%
-
Display accuracy:
-
Voltmeter ±(0.2%Rdg + 2 digits)
-
Ammeter ±(1.0%Rdg + 2 digits)
-
-
Input voltage: 110–127VAC ±10% 60Hz, 220–240VAC ±10% 50Hz (switchable)
The M50‑YP Multi‑Outputs Programmable DC Power Supply is a versatile instrument designed for laboratory and industrial applications. It provides one adjustable output and two fixed outputs, offering flexibility for a wide range of electronics testing needs. With constant voltage and constant current modes, low ripple and noise, and built‑in over‑current protection, it ensures stable and reliable performance. Equipped with an LED digital display, USB interface, and durable aluminium alloy panel, the M50‑YP is ideal for universities, research labs, and electronics workshops requiring programmable multi‑output DC power.
