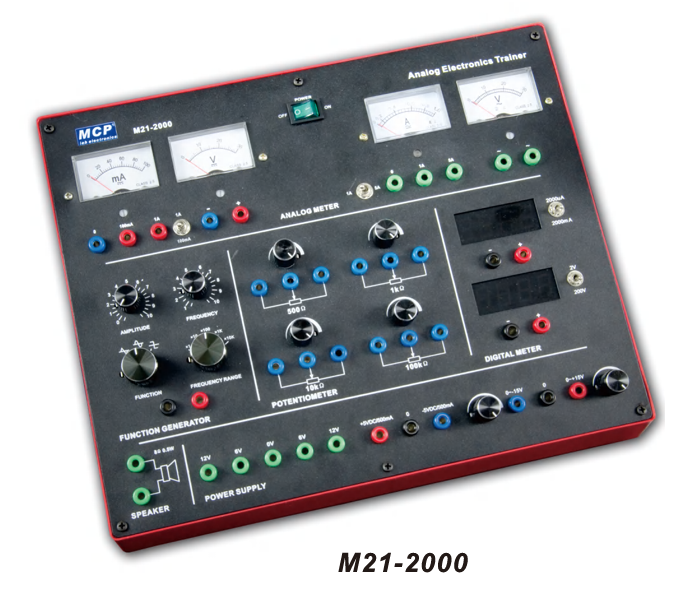

M21-2000 BASIC ELECTRICAL TRAINING SYSTEM
BDT 39,186/-
Product Details
Brand: MCP
Model: M21-2000
Country Of Origin: China
Features
-
High-level, high-quality analog trainer
-
Combines essential functions for analog experiments
-
Includes analog meters, digital meters, function generator, potentiometers, speaker, and DC power supply
Specifications (M21-2000)
-
Analog Meters
-
AC ammeter: 0–1A–5A
-
AC voltmeter: 0–30V
-
DC ammeter: 0–100mA–1A
-
DC voltmeter: 0–30V
-
-
Digital Meters (3½ digits)
-
DC ammeter: 0–2000µA–2000mA
-
DC voltmeter: 0–2V–200V
-
-
Function Generator
-
Frequency ranges: 1–10Hz, 10–100Hz, 100Hz–1kHz, 1–10kHz, 10–100kHz
-
Outputs: sine, triangle, square waves (0–10Vpp variable)
-
-
Potentiometers
-
VR1 = 100Ω
-
VR2 = 1kΩ
-
VR3 = 10kΩ
-
VR4 = 100kΩ
-
-
Speaker
-
2.5" diameter, 8Ω / 0.5W
-
-
Power Supply
-
Fixed DC: +5V, 500mA (×2)
-
Variable DC: 0–+15V, 1A; 0––15V, 1A
-
Fixed AC: 12V–6V–0–6V–12V
-
-
Accessories
-
Power cord
-
User manual
-
-
Input Voltage
-
110–127VAC ±10% (60Hz)
-
220–240VAC ±10% (50Hz) switchable
-
-
Dimensions
-
334×95×258mm
-
-
Weight
-
4.5kg
| Analog Meters |
AC ammeter: 0–1A–5A AC voltmeter: 0–30V DC ammeter: 0–100mA–1A DC voltmeter: 0–30V |
| Digital Meters (3½ digits) |
DC ammeter: 0–2000µA–2000mA DC voltmeter: 0–2V–200V |
| Function Generator |
Frequency ranges: 1–10Hz, 10–100Hz, 100Hz–1kHz, 1–10kHz, 10–100kHz Outputs: sine, triangle, square waves (0–10Vpp variable) |
| Potentiometers |
VR1 = 100Ω VR2 = 1kΩ VR3 = 10kΩ VR4 = 100kΩ |
| Speaker | 2.5" diameter, 8Ω / 0.5W |
| Power Supply |
Fixed DC: +5V, 500mA (×2) Variable DC: 0–+15V, 1A; 0––15V, 1A Fixed AC: 12V–6V–0–6V–12V |
| Accessories |
Power cord User manual |
| Input Voltage |
110–127VAC ±10% (60Hz) 220–240VAC ±10% (50Hz) switchable |
| Dimensions | 334×95×258mm |
| Weight | 4.5kg |
Features
-
High-level, high-quality analog trainer
-
Combines essential functions for analog experiments
-
Includes analog meters, digital meters, function generator, potentiometers, speaker, and DC power supply
Specifications (M21-2000)
-
Analog Meters
-
AC ammeter: 0–1A–5A
-
AC voltmeter: 0–30V
-
DC ammeter: 0–100mA–1A
-
DC voltmeter: 0–30V
-
-
Digital Meters (3½ digits)
-
DC ammeter: 0–2000µA–2000mA
-
DC voltmeter: 0–2V–200V
-
-
Function Generator
-
Frequency ranges: 1–10Hz, 10–100Hz, 100Hz–1kHz, 1–10kHz, 10–100kHz
-
Outputs: sine, triangle, square waves (0–10Vpp variable)
-
-
Potentiometers
-
VR1 = 100Ω
-
VR2 = 1kΩ
-
VR3 = 10kΩ
-
VR4 = 100kΩ
-
-
Speaker
-
2.5" diameter, 8Ω / 0.5W
-
-
Power Supply
-
Fixed DC: +5V, 500mA (×2)
-
Variable DC: 0–+15V, 1A; 0––15V, 1A
-
Fixed AC: 12V–6V–0–6V–12V
-
-
Accessories
-
Power cord
-
User manual
-
-
Input Voltage
-
110–127VAC ±10% (60Hz)
-
220–240VAC ±10% (50Hz) switchable
-
-
Dimensions
-
334×95×258mm
-
-
Weight
-
4.5kg
The M21-2000 Basic Electrical Training System is a comprehensive analog trainer designed for electrical education and experimentation. Featuring analog and digital meters, a built-in function generator, variable potentiometers, a speaker, and regulated DC/AC power supplies, it supports a wide range of experiments in circuit measurement, waveform generation, and load testing. Compact and versatile, the M21-2000 is ideal for technical institutes, vocational schools, and engineering labs seeking a complete analog training solution.
