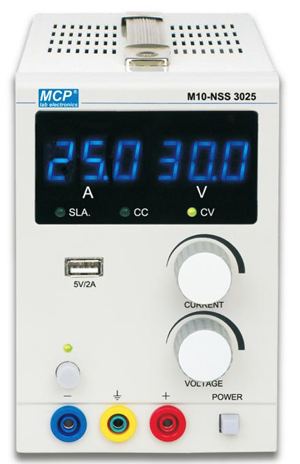

M10-NSS3025 SWITCHING DC POWER SUPPLY
BDT 33,280/-
Product Details
Brand: MCP
Model: M10-NSS3025
Country Of origin: China
Features
-
750W power output
-
Constant voltage and constant current
-
Parallel operation with multiple units
-

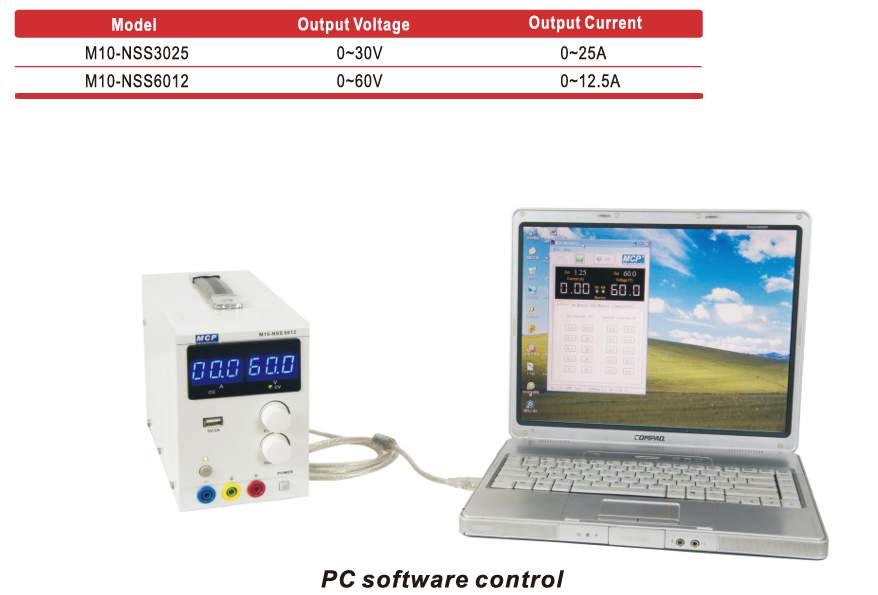

Remote programmable via USB to computer
-
10 programmable sets of voltage and current
-
Protection voltage and current settable
-
Rotary encoder knob with fine and coarse tuning
-
USB charger 5V/2A
Specifications
-
Line regulation:
-
CV ≤ 1×10−4±2 mV
-
CC ≤ 1×10−4±1 mA
-
-
Load regulation:
-
CV ≤ 1×10−4±4 mV, CC ≤ 2×10−3±3 mA (I < 10A)
-
CV ≤ 2×10−4±4 mV, CC ≤ 2×10−3±3 mA (I ≥ 10A)
-
-
Ripple & noise (RMS): CV ≤ 10mVrms, CC ≤ 10mArms
-
Switching frequency: 60kHz
-
Display accuracy:
-
Voltmeter ±(0.2%Rdg + 2 digits)
-
Ammeter ±(0.2%Rdg + 5 digits)
-
-
Input voltage: 110VAC ±20%, 220VAC ±20%, 50/60Hz (switchable)
-
Full load input current: 4.35A (220VAC), 8.7A (110VAC)
-
Efficiency: 80%
-
Protections: Over voltage, over current, over heat
-
Tracking protections:
-
Over voltage: set voltage ±1.5V
-
Over current: set current ±1.5A
-
-
USB output: 5V/2A
-
Dimensions: 100(W) × 160(H) × 320(D) mm
-
Weight: 3kg
| Line regulation: |
CV1×10−4±2 mV CC1×10−4±1mA |
| Load regulation: |
CV1×10−4±4mV, CC2×10−3±3 mA(I < 10A) CV2×10−4±4mV, CC2×10−3±3mA(I ≥ 10A) |
| Ripple & noise (RMS): | CV ≤ 10mVrms, CC ≤ 10mArms |
| Switching frequency: | 60kHz |
| Display accuracy: |
Voltmeter ±(0.2%Rdg + 2 digits) Ammeter ±(0.2%Rdg + 5 digits) |
| Input voltage: | 110VAC ±20%, 220VAC ±20%, 50/60Hz (switchable) |
| Full load input current: | 4.35A (220VAC), 8.7A (110VAC) |
| Efficiency: | 80% |
| Protections: | Over voltage, over current, over heat |
| Tracking protections: |
Over voltage: set voltage ±1.5V Over current: set current ±1.5A |
| USB output: | 5V/2A |
| Dimensions: | 100(W) × 160(H) × 320(D) mm |
| Weight: | 3kg |
Features
-
750W power output
-
Constant voltage and constant current
-
Parallel operation with multiple units
-
Remote programmable via USB to computer
-
10 programmable sets of voltage and current
-
Protection voltage and current settable
-
Rotary encoder knob with fine and coarse tuning
-
USB charger 5V/2A
Specifications
-
Line regulation:
-
CV ≤ 1×10−4±2 mV
-
CC ≤ 1×10−4±1 mA
-
-
Load regulation:
-
CV ≤ 1×10−4±4 mV, CC ≤ 2×10−3±3 mA (I < 10A)
-
CV ≤ 2×10−4±4 mV, CC ≤ 2×10−3±3 mA (I ≥ 10A)
-
-
Ripple & noise (RMS): CV ≤ 10mVrms, CC ≤ 10mArms
-
Switching frequency: 60kHz
-
Display accuracy:
-
Voltmeter ±(0.2%Rdg + 2 digits)
-
Ammeter ±(0.2%Rdg + 5 digits)
-
-
Input voltage: 110VAC ±20%, 220VAC ±20%, 50/60Hz (switchable)
-
Full load input current: 4.35A (220VAC), 8.7A (110VAC)
-
Efficiency: 80%
-
Protections: Over voltage, over current, over heat
-
Tracking protections:
-
Over voltage: set voltage ±1.5V
-
Over current: set current ±1.5A
-
-
USB output: 5V/2A
-
Dimensions: 100(W) × 160(H) × 320(D) mm
-
Weight: 3kg
The M10‑NSS302 Programmable DC Power Supply is a high‑performance 750W solution designed for advanced laboratory and industrial applications. It offers constant voltage and constant current modes with ultra‑low ripple and noise, ensuring precise and stable operation. With USB programmability, 10 programmable voltage/current sets, and parallel operation capability, the M10‑NSS302 provides unmatched flexibility. Built‑in protections against over voltage, over current, and overheating, plus fine/coarse tuning via rotary encoder, make it both safe and user‑friendly. Compact yet powerful, it is ideal for research labs, universities, and industrial environments requiring programmable high‑power DC supply.
