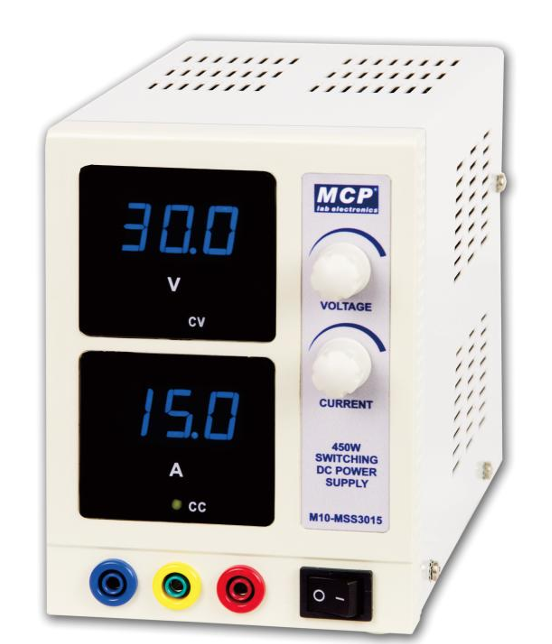

M10-MSS3015 SWITCHING DC POWER SUPPLY
BDT 22,244/-
Product Details
Brand: MCP
Model: M10-MSS3015
Country Of origin: China
Features
-
450W power output
-
Constant voltage and constant current
-
Temperature‑controlled fan and overheat protection
Specifications
-
Line regulation: CV ≤ 6×10−4+3 mV, CC ≤ 2×10−3+3 mA
-
Load regulation: CV ≤ 2×10−3+5 mV, CC ≤ 2×10−3+5 mA
-
Ripple & noise: CV ≤ 15mVrms, CC ≤ 15mArms
-
Display accuracy:
-
Voltmeter ±(1.0%Rdg + 2 digits)
-
Ammeter ±(1.0%Rdg + 2 digits)
-
-
Input voltage: 110–127VAC ±10% 60Hz or 220–240VAC ±10% 50Hz
| Line regulation: |
CV6×10−4+3mV CC2×10−3+3mA |
| Load regulation: |
CV2×10−3+5mV CC2×10−3+5mA |
| Ripple & noise: | CV ≤ 15mVrms, CC ≤ 15mArms |
| Display accuracy: |
Voltmeter ±(1.0%Rdg + 2 digits) Ammeter ±(1.0%Rdg + 2 digits) |
| Input voltage: | 110–127VAC ±10% 60Hz or 220–240VAC ±10% 50Hz |
Features
-
450W power output
-
Constant voltage and constant current
-
Temperature‑controlled fan and overheat protection
Specifications
-
Line regulation: CV ≤ 6×10−4+3 mV, CC ≤ 2×10−3+3 mA
-
Load regulation: CV ≤ 2×10−3+5 mV, CC ≤ 2×10−3+5 mA
-
Ripple & noise: CV ≤ 15mVrms, CC ≤ 15mArms
-
Display accuracy:
-
Voltmeter ±(1.0%Rdg + 2 digits)
-
Ammeter ±(1.0%Rdg + 2 digits)
-
-
Input voltage: 110–127VAC ±10% 60Hz or 220–240VAC ±10% 50Hz
The M10‑MSS Series Switching DC Power Supply is a high‑performance 450W solution designed for laboratory, industrial, and educational environments. It delivers stable constant voltage and constant current outputs with low ripple and noise, ensuring precise and reliable operation. Equipped with a temperature‑controlled fan and overheat protection, the M10‑MSS Series is built for durability and continuous use. Its accurate digital metering makes it ideal for electronics testing, development, and research applications requiring dependable DC power.
