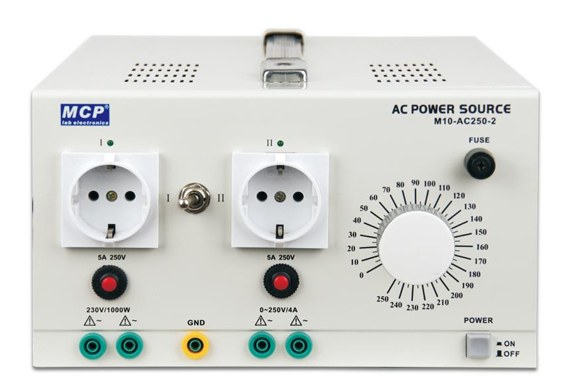

M10-AC250-2 AC POWER SUPPLY
BDT 40,638/-
Product Details
Brand: MCP
Model: M10-AC250-2
Country Of origin: China
Features
-
Separate, isolative safety output
-
One continuously adjustable output voltage channel
-
One fixed output voltage channel (selectable)
-
High efficiency and convenient operation
Specifications
-
Input voltage: 230(220)VAC
-
Output 1 voltage: 230VAC
-
Output 1 current: Max. 4.35A
-
Output 1 power: Max. 1000VA
-
Output 2 voltage: 0–250VAC
-
Output 2 current: Max. 4A
-
Output 2 power: Max. 1000VA
-
Protection: Over current
-
Dimensions: 260(W) × 160(H) × 340(D) mm
-
Weight: 16kg
| Input voltage: | 230(220)VAC |
| Output 1 voltage: | 230VAC |
| Output 1 current: | Max. 4.35A |
| Output 1 power: | Max. 1000VA |
| Output 2 voltage: | 0–250VAC |
| Output 2 current: | Max. 4A |
| Output 2 power: | Max. 1000VA |
| Protection: | Over current |
| Dimensions: | 260(W) × 160(H) × 340(D) mm |
| Weight: | 16kg |
Features
-
Separate, isolative safety output
-
One continuously adjustable output voltage channel
-
One fixed output voltage channel (selectable)
-
High efficiency and convenient operation
Specifications
-
Input voltage: 230(220)VAC
-
Output 1 voltage: 230VAC
-
Output 1 current: Max. 4.35A
-
Output 1 power: Max. 1000VA
-
Output 2 voltage: 0–250VAC
-
Output 2 current: Max. 4A
-
Output 2 power: Max. 1000VA
-
Protection: Over current
-
Dimensions: 260(W) × 160(H) × 340(D) mm
-
Weight: 16kg
The M10‑AC250‑2 AC Power Supply is a versatile dual‑channel solution designed for laboratory and industrial applications. It provides one fixed 230VAC output and one continuously adjustable output up to 250VAC, each capable of delivering up to 1000VA. With isolative safety outputs, high efficiency, and built‑in over‑current protection, the M10‑AC250‑2 ensures secure and reliable operation. Its robust design makes it ideal for universities, research labs, and electronics workshops requiring flexible AC power sources.
